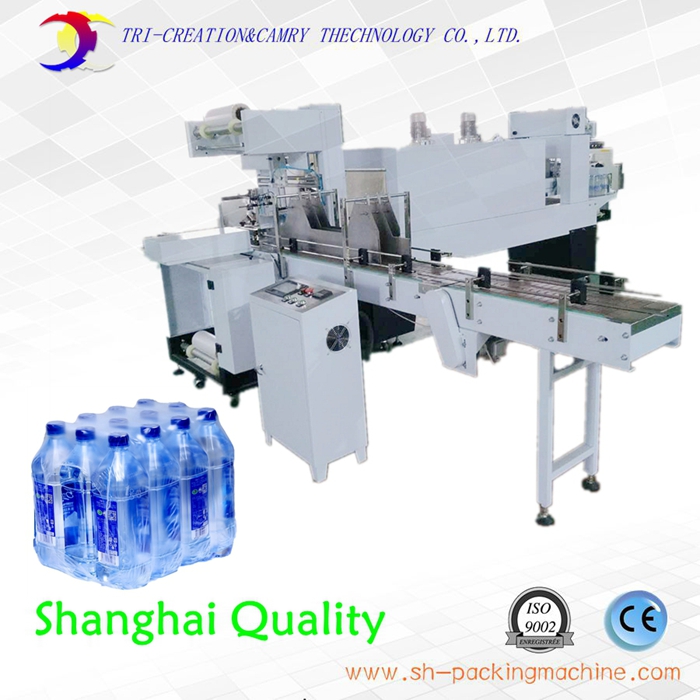

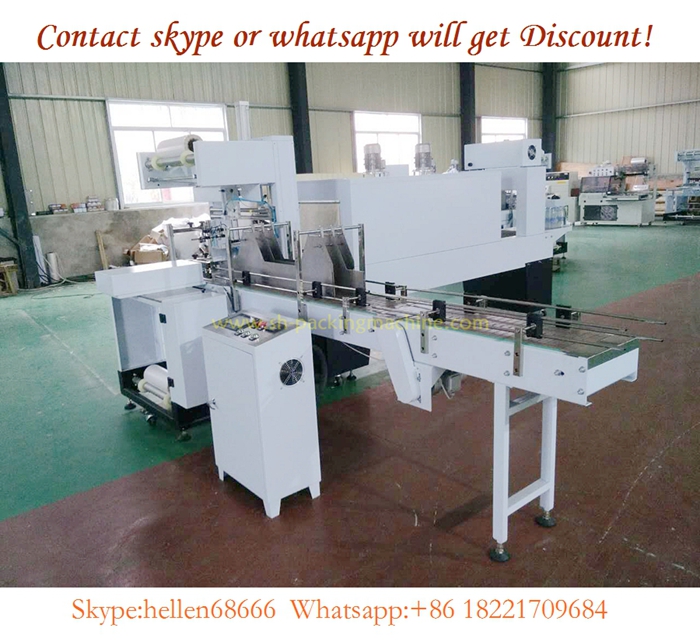

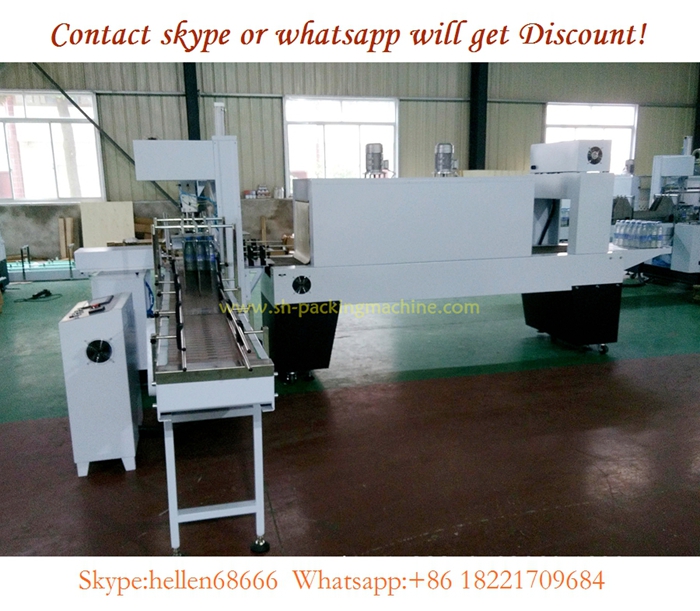

Automatic heat film shrink packing machine

Product descriptions:

Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling

1.      Feeding: The bottles enter into conveyor trough of sealing machine, on the conveyor trough there are adjustable guard-rail. The feeding will stop when the bottle arrived to the set position.

2.      Pushing bottles: After the bottles arrived to the pushing platform, the pushing cylinder will work at the same time to push the bottles over the sealing-cutting line.

3.      Cover film and sealing: After bottles pushed over the sealing-cutting line, the upper pressing device will press the bottles, this process will protect the bottles falling. After pushing cylinder return, the film sealing cylinder and film cutting cylinder will work together to finish the film covering and sealing process.

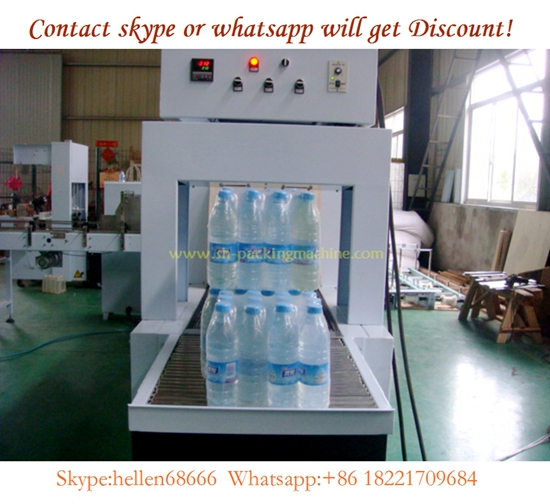

4.      Shrink: After finishing the film covering the bottles will enter to the shrinking tunnel.

5.      Cooling: After shrinking, the bottles will enter into the cooling device which installed on the end part, then enter into the stock shelf and waiting for stacking.

Product features:

1.    The film covering and sealing device adopt advanced heat sealing and heat cutting structure,  with advantages of sealing firmly, neat edge and good joined performance.

2.       The sealing and cutting part driver by cylinder, with guide columns at both ends, which can guarantee the process steadily.

3.       Special protection function: when obstruction on the sealing and cutting position, the equipment will be prevent and alarming at the same time to protect the package from damaged.

4.       Feeding trough adopts flat feeding type.

5.       The heating part adopts high-quality stainless steel cooling fin, with advantage of steady & homogeneous heat dissipation and long use life.

6.       PID temperature controller: accurate and energy-saving.

7.     The whole equipment controlled by automatic controller, with steady and reliable production, can apply to working long hours and non-stop.
