PET bottle blowing machine line,2 cavities with auxiliary machines

Product name：PET bottle blowing machine line,2 cavities with auxiliary machines

Item：USD26000

Price：USD26000

Details：

Product description:

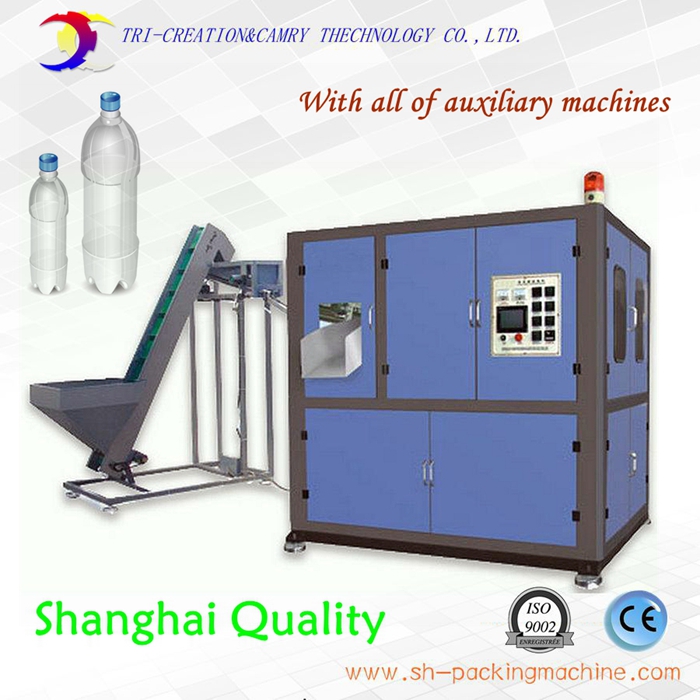

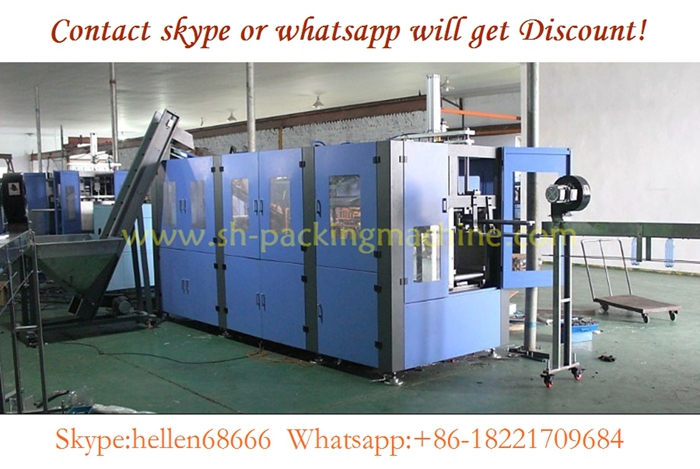

Automatic PET bottle blowing machine line,2 cavities bottle blow molding machine line with all the Auxiliary machines CE

Product features:

1, the use of double-crank diagonal arrangement, four-lever clamping, clamping speed, strong clamping force, clamping joints tight and thin.

2, the use of chain adjustment system is simple and fast.

3, the only use of integral casting rack, weight, not easy to shake.

4, the use of rigid rail before removing the template, in the template structure, 100% not preform production, greatly enhancing the safety, reliability and stability of the machine.

5, dual boot working and safety devices to prevent work-related injuries.

6, advanced power generation systems designs, c-type, d-type Japan Mitsubishi PLC controller, ensure that the actuator is accurate and reliable.

7, gas is advanced in design, with buffer, all moving parts work smoothly, shock, low noise.

8, sealing and tensile design of cylinder body, left and right cylinders into a group, do not interfere.

9, isolated air control system, prevention of pollution from exhaust emissions workshop.

10, and some single preform and one-way bottles feature, take the convenient, fast, and increase

Technical parameters:

1. Linear-Blow Moulding Machines 2200 Bottles/Hour

bottle volume: 10ml-1.5L

Model No.:ZD-200-2-CAVITY

Delivery Date: 1 Month

Productivity: 15Sets/Month

Packing: Wooden Case

Function: For Producing Pet Bottles

Payment Type: T/T

Certificates: SGS, CE, ISO9001

Export Markets: All of the World

ITEM
Theoretical output	2200
Max.container volume	1.5L
Max.neck diameter	55MM
Max.container diameter	100MM
Max.container height	350MM
Number of cavity	2
Number of lamp	32
Max.heating power	25KW
Installation power	50KW
Operating low pressure	0.7-1.0Mpa
Blowing pressure	2.5-3.5Mpa
Operating pressure	0.3-0.5Mpa
Machine dimension	2.3×1.6×1.8
Machine weight	2200Kg

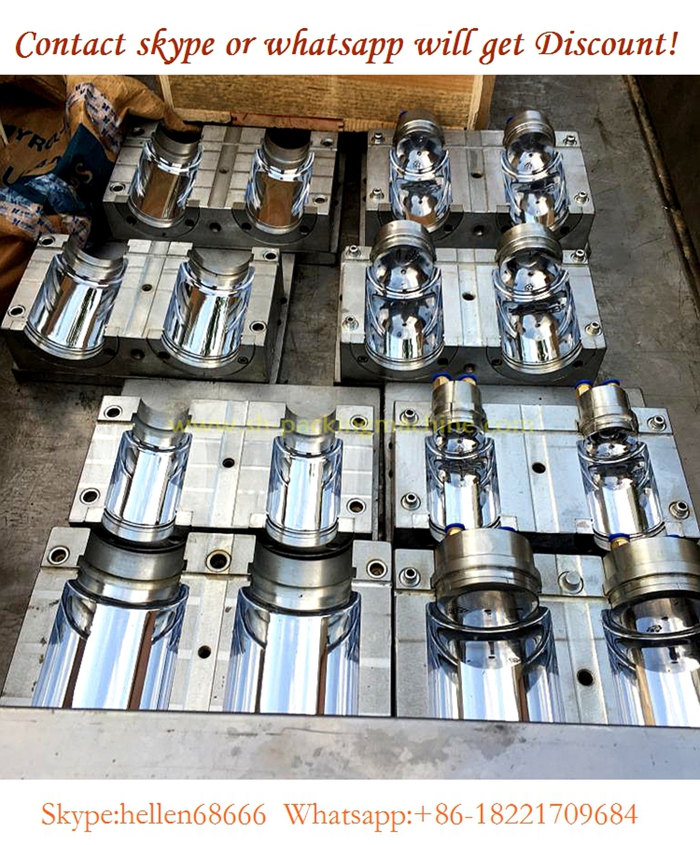

2. PET Bottle Blowing PET blow mould

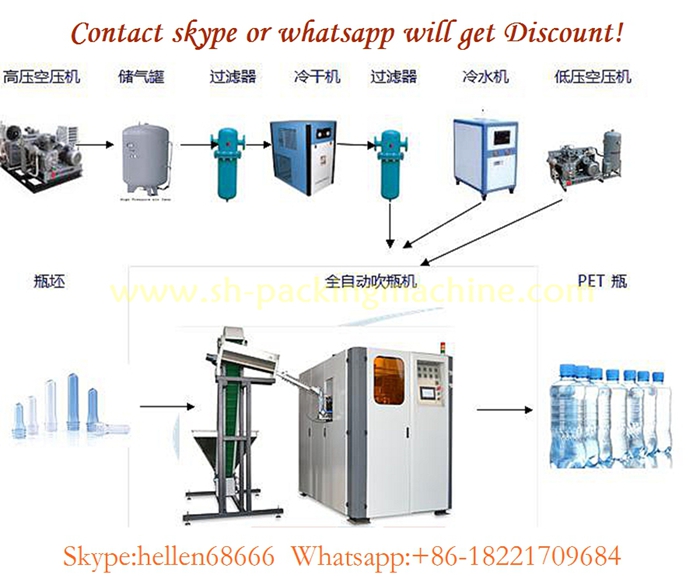

Auxiliary machines

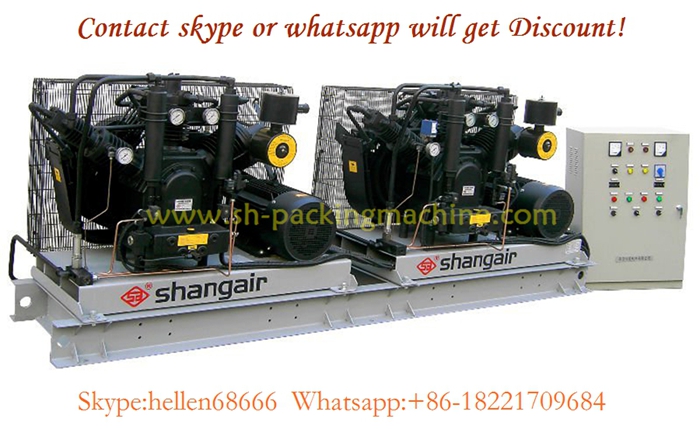

1、Specially for PET Bottle Blowing High-pressure Air Compressor

Model No.

Air Discharge

(m3/min)

Discharge Pressures

（Mpa）

Motor Power

（KW）

Weight

(kg)

Size (mm)

Length×width×height

34SH-1830T

2.40

3.0

650

1150×900×1420

2、Specially for PET Bottle Blowing low-pressure Air Compressor

Model No.

Air Discharge

(m3/min)

Discharge Pressures（Mpa）

Moter Power

（KW）

Weight

(kg)

Size (mm)

Length×width×height

09W-1.6/10

1.6

1.0

680

1800×860×1600

3、Specially for PET Bottle Blowing machine high-pressure air tank

Air storage tank	Unit	0.6M3/3.0Mpa
Volume	M3	0.6
Pressure designed	Mpa	4.0
Temp. designed	℃	100
Work pressure	Mpa	3.0
Test pressure	Mpa	4.13
Weight	Kg	400
Overall Dimension	mm	120011001650

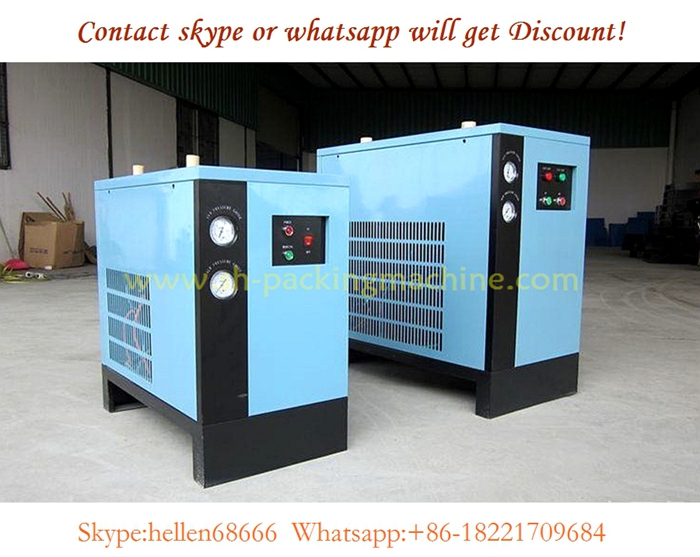

4、Specially for PET Bottle Blowing machine High-pressure Air dryer

Type	2-2
Air volume treated	2.0
air inlet temp	≤80℃
Dewpoint temperature	2~10℃
Coolant	R22
Power supply	220V
Compressor power	3/4HP
Air outlet quality	Dewpoint-23℃; Solid dust≤0.01um ; Oil content≤0.01ppm

5、Specially for PET Bottle Blowing machine High-pressure Air filter

1) Capacity

2.0m3/min

4.0MPa

2) Inlet temperature: ≥ 80oC

3)Working pressure: 0.4-4.0Mpa

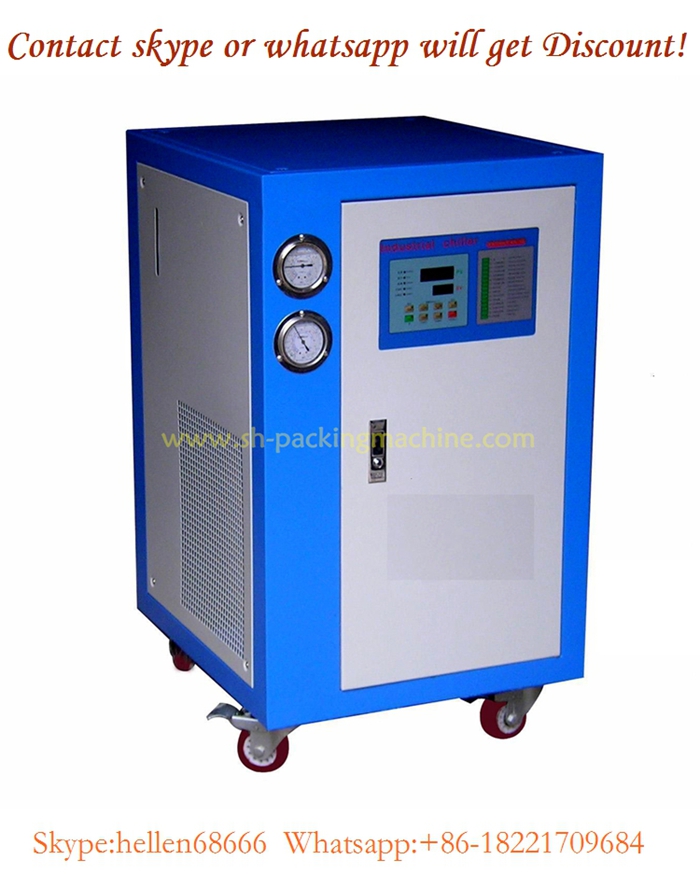

6. Specially for PET Bottle Blowing machine water chiller
