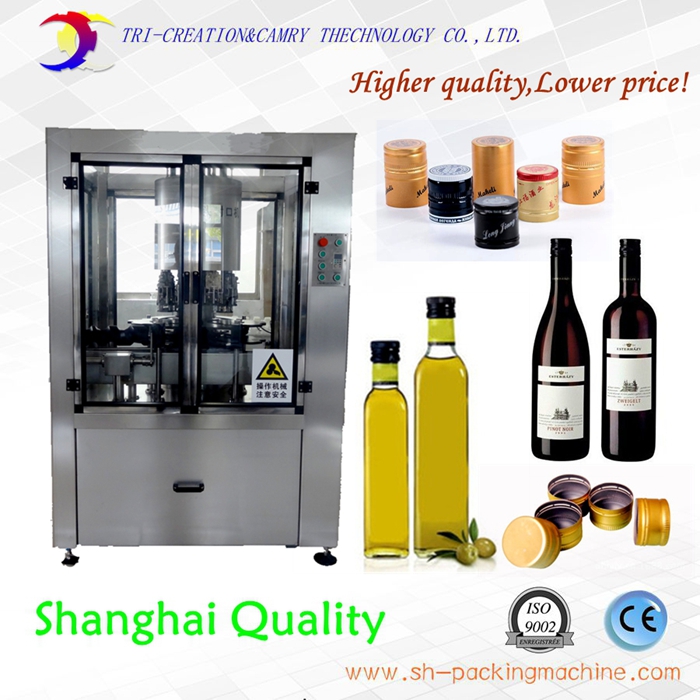

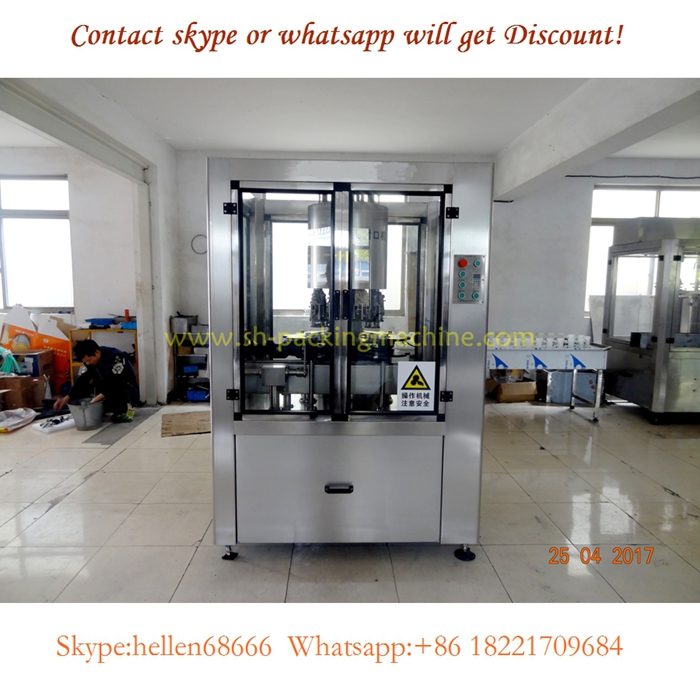

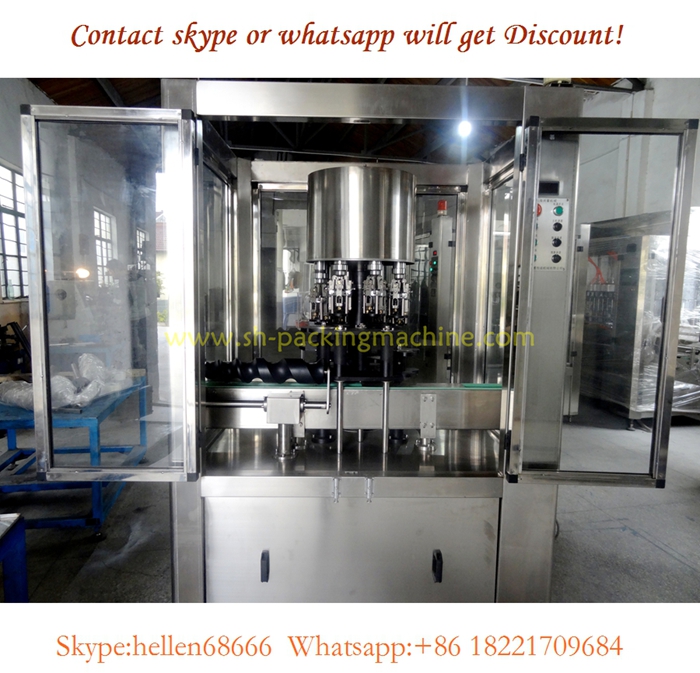

aluminum cap sealing machine,wine bottle capping machine,8 head

This machine uses a rotary positioning capping, advanced frequency control technology,
so that it can achieve steeples speed rolling cover and  replace parts easily and fast.
The structure of this machine is simple,so we can maintain and adjust it easily.

Product features:

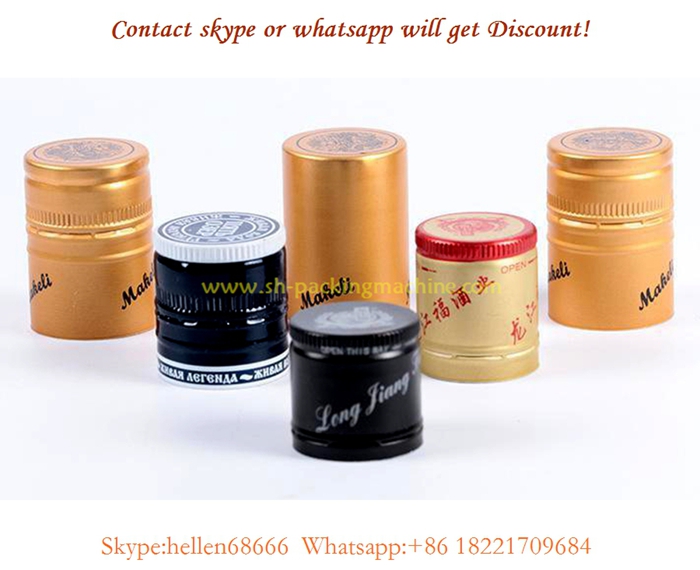

this suitable for rolling aluminum cover,metal cover ect.

1. Adopt the advanced grasp and release system.

2、Made by the steel structure and 304 stainless steel cover, the cap screwing machine
keep moving by the gear driving.

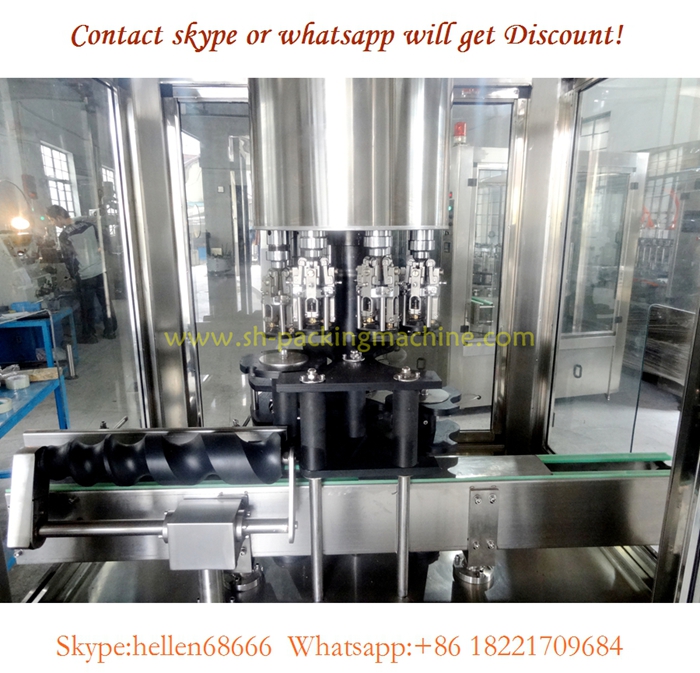

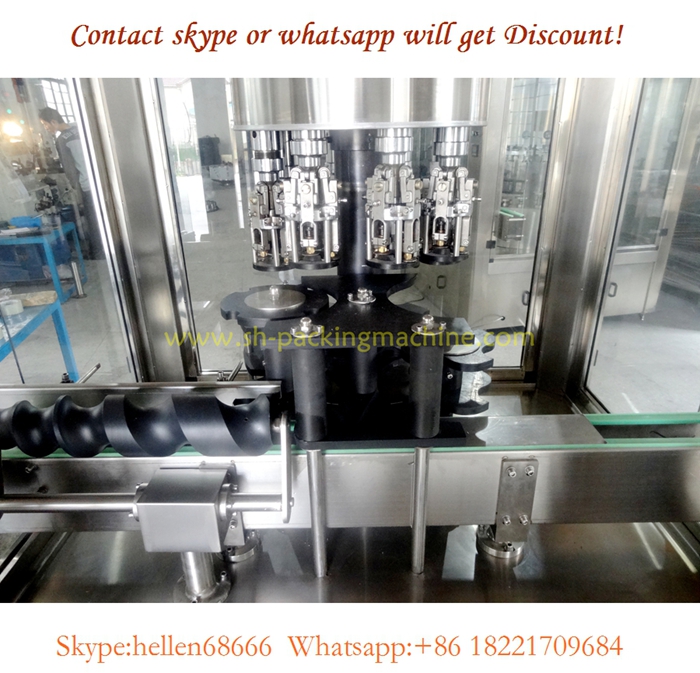

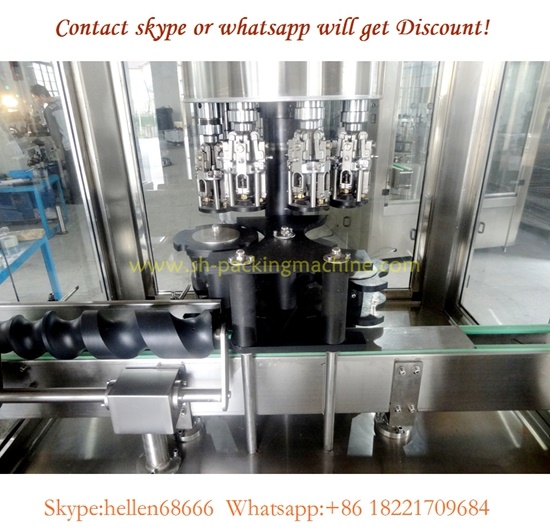

3、The bottle entering and exiting through the screw and dial plate,the screw rod and dial plate

System all with overload protect equipment, while bottle seizing up, bottle broken,
the equipment will automatic stop and start the alarming system.

4、The fixed parts of the cap screwing machine include the cap feeder
and cap dropping system.

5、The cap feeder with 304 stainless steel cap tank, cap moving guider
(with the cap checking system) automatically control the cap feeder and running speed.

6、The cap feeder transport the cap to the slide and then mouth down to
the cap dropping system.

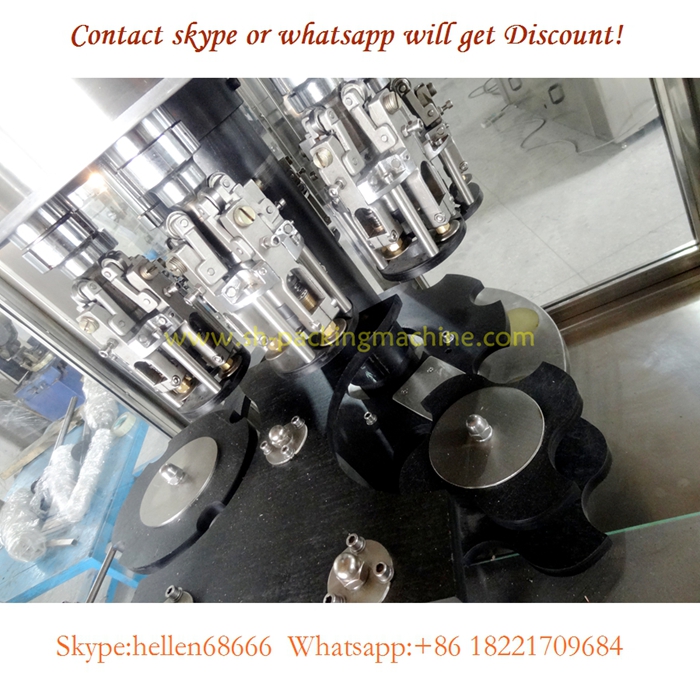

7、The screw head up and down controlled by the grooved cam at the fixed workplace.

8、The twisting force can be adjusted by the outside button, with the twisting force scale mark,
can adjust as the customer’s request.

Technical parameters:

Working capacity:6000 bottles/H(for 375ML and 750ml bottle)

Capping heads: 8

Bottle Dia.: φ50-φ100mm

Bottle height:100-350mm

Cap size:26-30mm diameter                                  Voltage: 2kw  220V

Machine size: 1300*11000*2000mm
