Product Description:

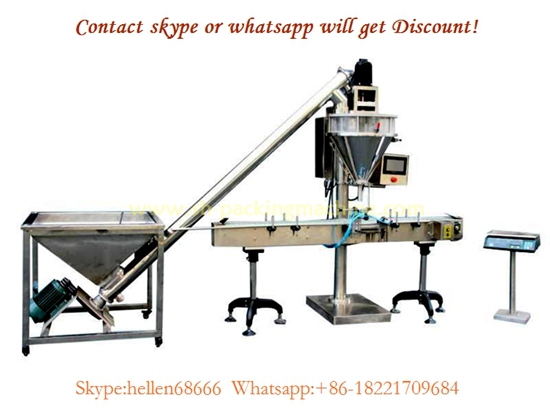

This automatic Auger powder filling machine could do work of measuring, can holding, and filling ,etc, it can constitute the whole set can filling work line with other related machines, and suitable for filling kohl, glitter powder, pepper, cayenne pepper, milk powder, rice flour, albumen powder, soy milk powder, coffee powder, medicine powder ,additive, essence and spice, etc
Product Features:

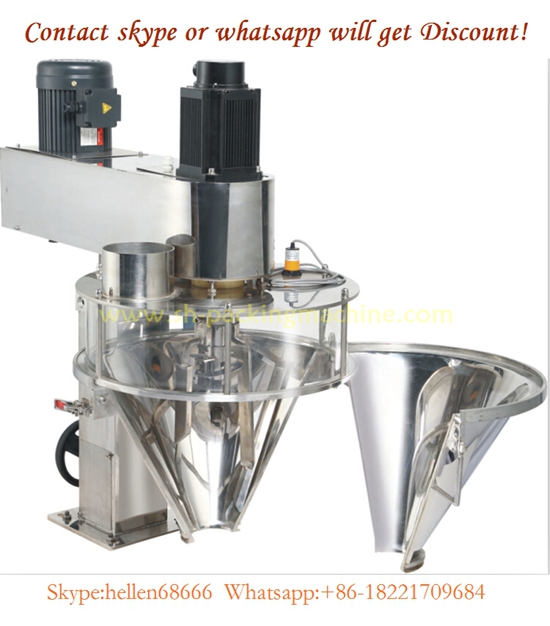

Stainless steel structure, level split hopper, easily to wash.
Servo-motor drive auger. Servo-motor controlled turntable with stable performance.
PLC, touch screen and weighing module control.
With adjustable height-adjustment handwheel at reasonable height, easy to adjust the head position.
With pneumatic can lifting device to assure the material not spilling out when filling.
Weight-chosen device, to assure each product be qualified, so to leave the latter cull eliminator.
To save all product’s parameter formula for later use, save 10 sets at most.
When changing the auger accessories, it is suitable for materials ranging from super fine powder to small granular.
Technical parameter:
|
Specifications of Single Head Auto Filling Machine
|
|
Model
|
BT-2A-2
|
BT-2B-2
|
|
Container Size
|
Diameter:20-85mm, 20-102mm
Height:15-150mm
|
Diameter:30-130mm, 30-160mm
Height:50-260mm
|
|
Filling Weight
|
1-500g
|
10-5000g
|
|
Filling Accuracy
|
≤100g, ≤±2%
100-500g, ≤±1%
|
≤500g, ≤±1%
>500g, ≤±0.5%
|
|
Filling Speed
|
20-50 bottles per minute
|
20-50 bottles per minute
|
|
Power Supply
|
3P AC208-415V 50/60HZ
|
3P AC208-415V 50/60HZ
|
|
Air Supply
|
6Kg/sq 0.05CBM/min
|
6Kg/sq 0.05CBM/min
|
|
Total Power
|
1.8Kw
|
2.3Kw
|
|
Total Weight
|
250Kg
|
350Kg
|
|
Machine Size
|
1000*720*1800(mm)
|
1600*1000*2000(mm)
|
|
Hopper Volume
|
35L
|
50L/65L
|
