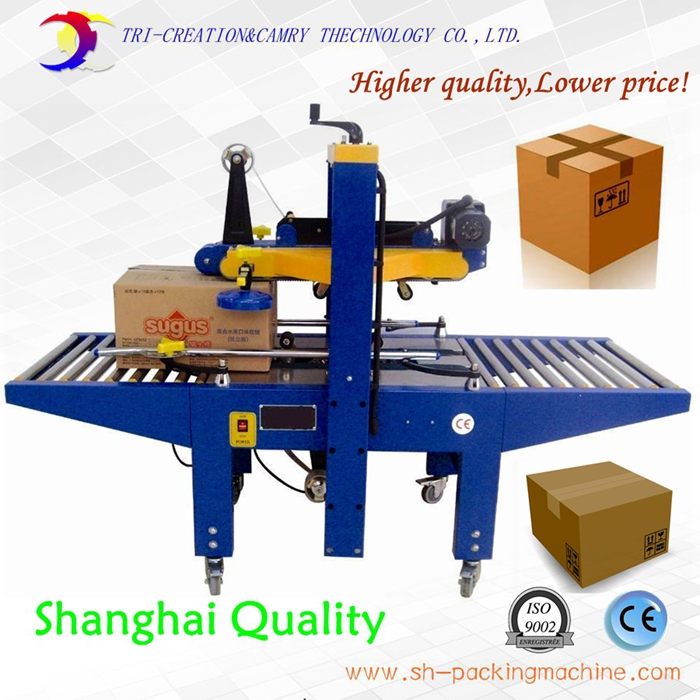

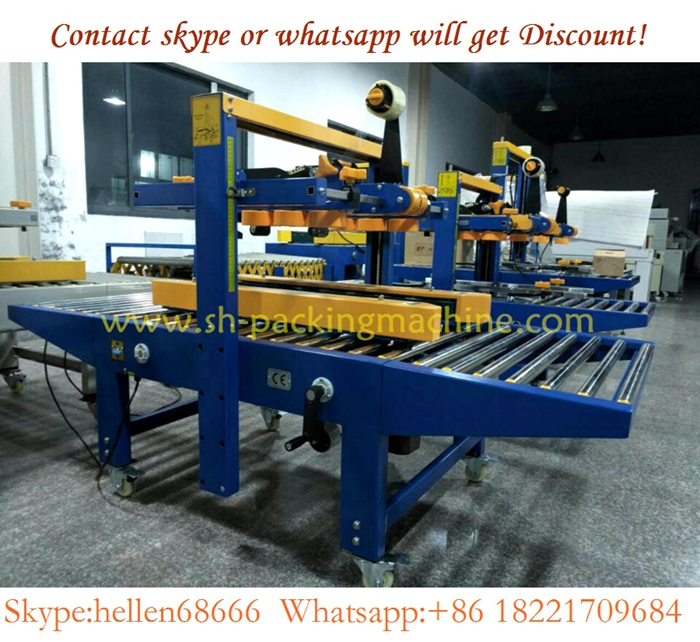

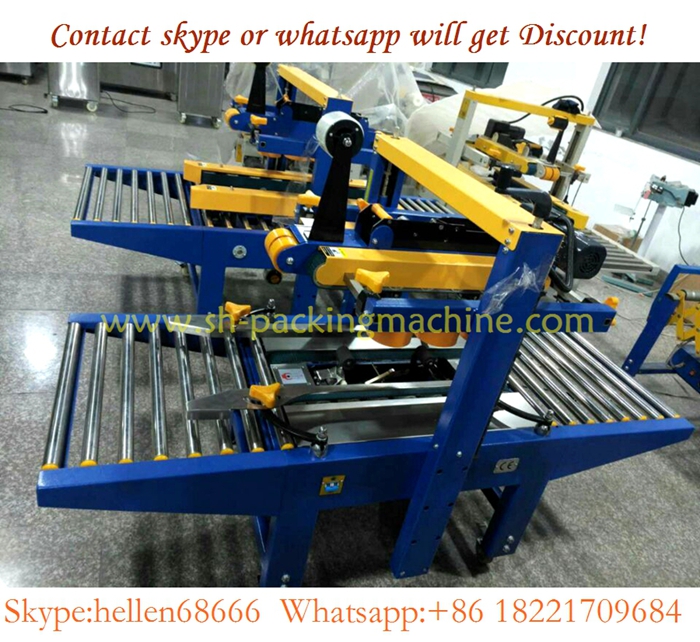

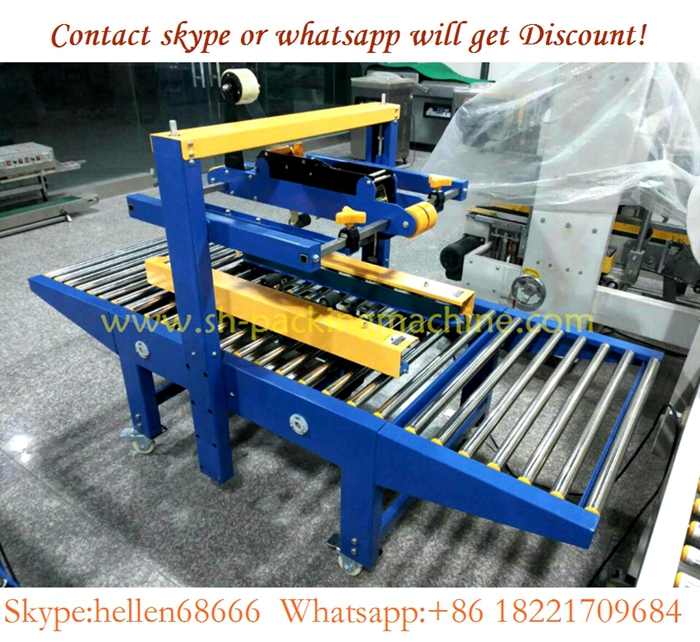

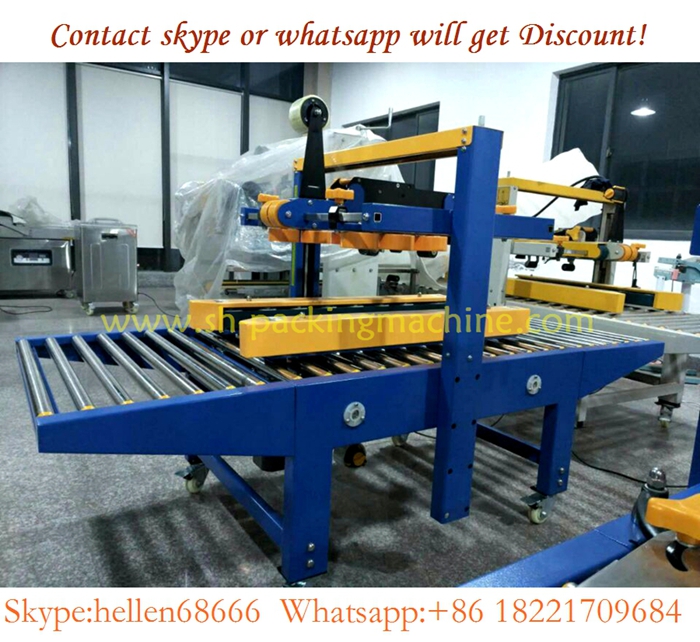

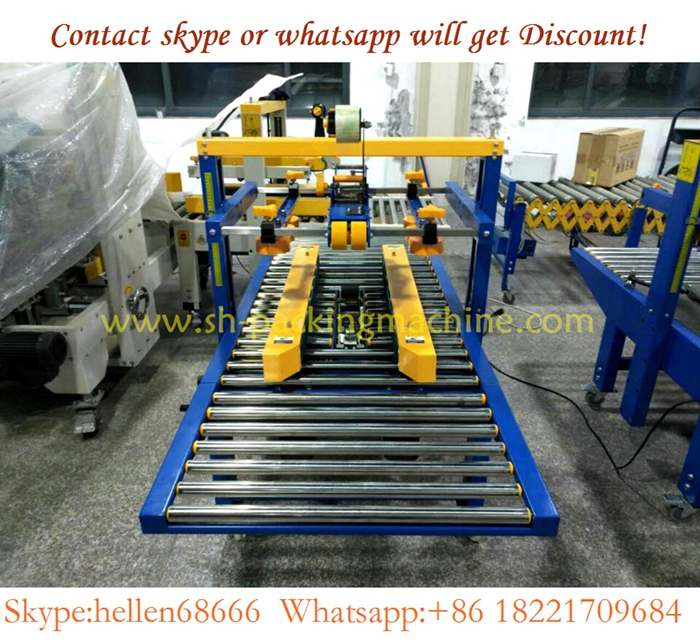

automatic tape carton sealing machine,box folding machine

Product description:

semi automatic carton sealing machine is suitable for circumstance where the size of cartons doesn't change frequently,which especially fits for continuous sealing of cartons in the same size.The machine is used in the fields of domestic electrical appliance,foodstuffs,general merchandise,medicine and chemical industries.

 Produce features:

Carton Sealing Machine Features and Advantages:

Top and bottom drive belts

Side drive belts

Interchangeable top bottom tape cartridge

2"Top and bottom tape head

Tape overlap length can be adjusted from 55mm~65mm to 75mm.

Roller working table

Manual top squeezers

 Blade guards

Crank handle adjustments

Leg height adjustment 240mm

Infeed/ Outfeed tables and 3"tape head are optional

3 inch side sealing are optional

Optional casters locking /swivel

 Features of carton sealing machine

1.Imported parts,electrical and pneumatic components;
2.Manually adjust the height and the width for different size of carton.

3.both side belts driven;
4.Cutter Safety system to prevent hands form stabbed by the cutter;
5.Both steel and stainless steel types;
6.Suit for cartons with side covers.

Technical Specification(standard machine):

*Model:ZDFY

*Sealing dimension:L(150-unlimited)*W(120-600)*H(130-500)mm

*Efficiency:20m/min

*Width of adhesive tape:48mm/60mm/75mm

*Voltage:110V-240V/1phase 380V 3phase

*Power:200W 50HZ/60HZ

*Machine size:L1020mm*W850mm*H1450mm

*Weight:145kg
