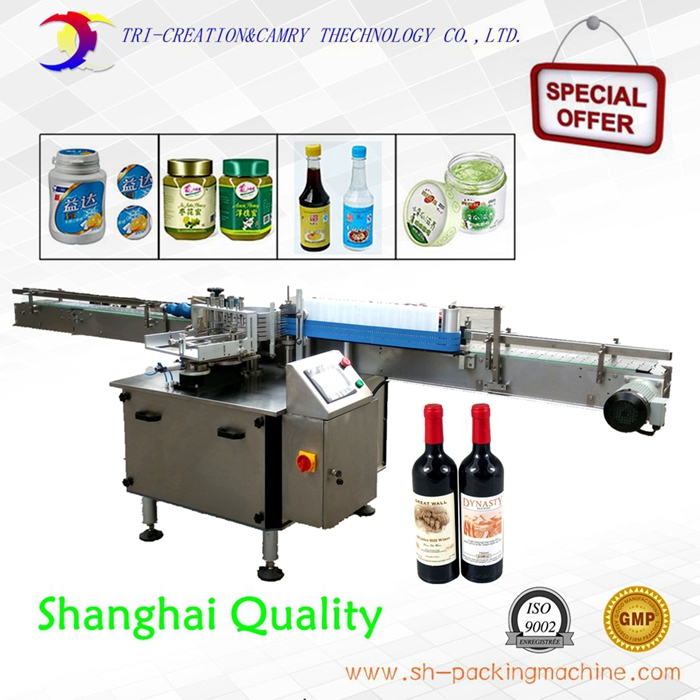

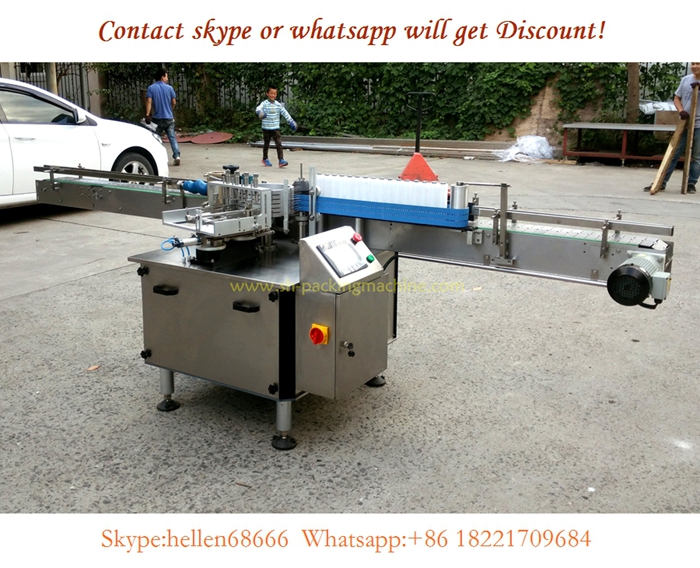

automatic wet glue paper labeling machine

Product Description:

 Automatic Wet Glue paper labeling machine is widely used for the labeling of the round object in such industries as food, medicine, daily chemical and so on.

Prodcut features:

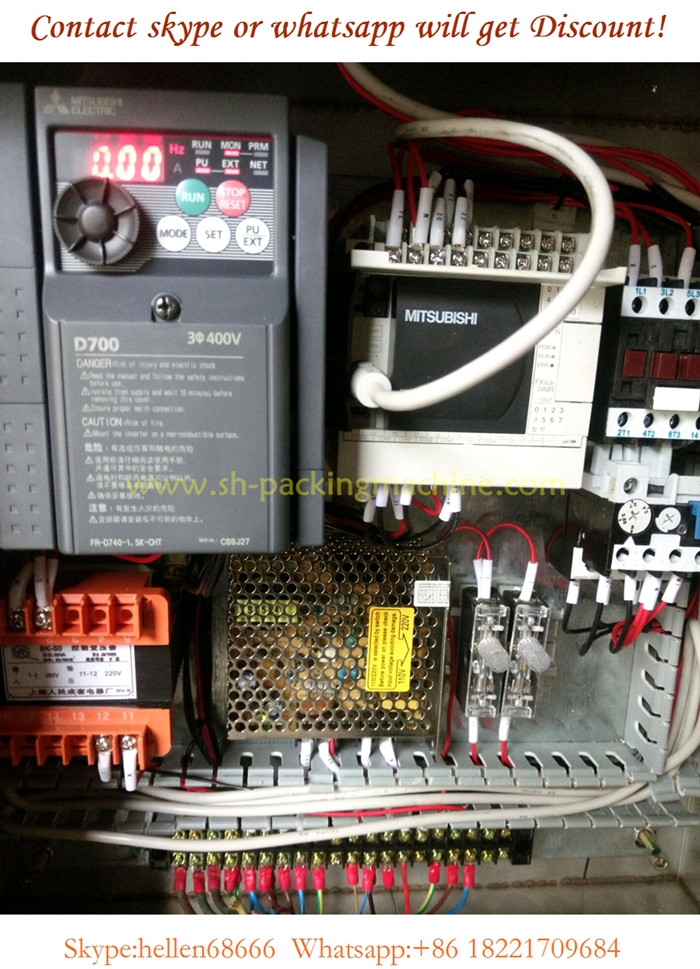

1)  Adopt vortex pump with strong sunction;Adopt bottle screw seperator,make the labeling performance stably;Adopt the import elctronic elements;Adopt SUS 304 and alluminum alloy material;Can be working alone or connect with the production line.

2) It can work independently or by connecting to the production line. In addition, it is equipped with air-powered glue pump and label shortage warning device.

3) Full automatic cold glue label machine, Full automatic wet glue labeling machine, Full automatic round bottle labeling machine, Straight line labeling machine (Fully-automatical Straight-line Glue Labeling), automatic straight line wet glue labeling machine, un-dry glue labeling machine

Technical Parameters:

Scope of application: Round and cylindrical objects

 Bottle dimension:(mm):Ø30-Ø120H: 50-300

 Label size(mm):L  20-230    H 30-110

 Labeling speed(according to the bottle size): 0-120B/min

 Labeling precision(mm): ±1

Power supply: 380V50HZ1.8KW

Air sauce: 5 kg/cm2

Weight (kg): 500KG

 Dimension(mm)(L*W*H): 2400*1000*1200

Can be customerized.
