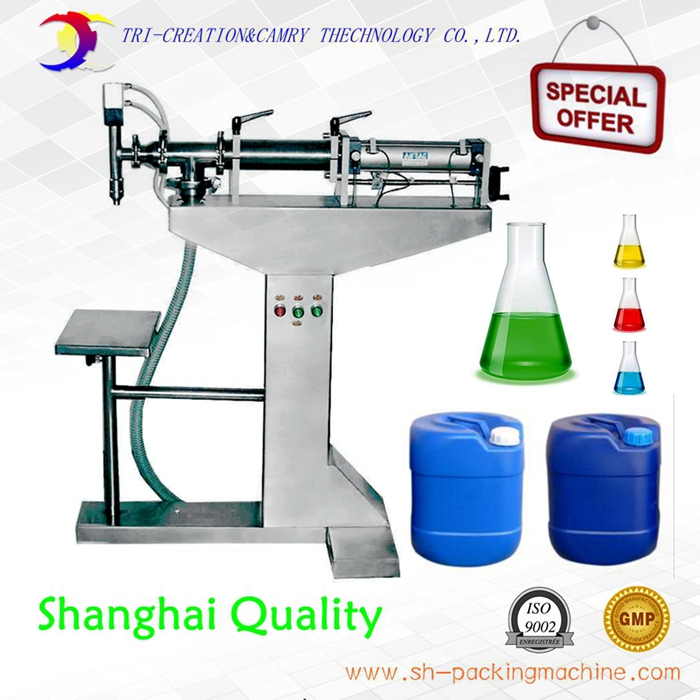

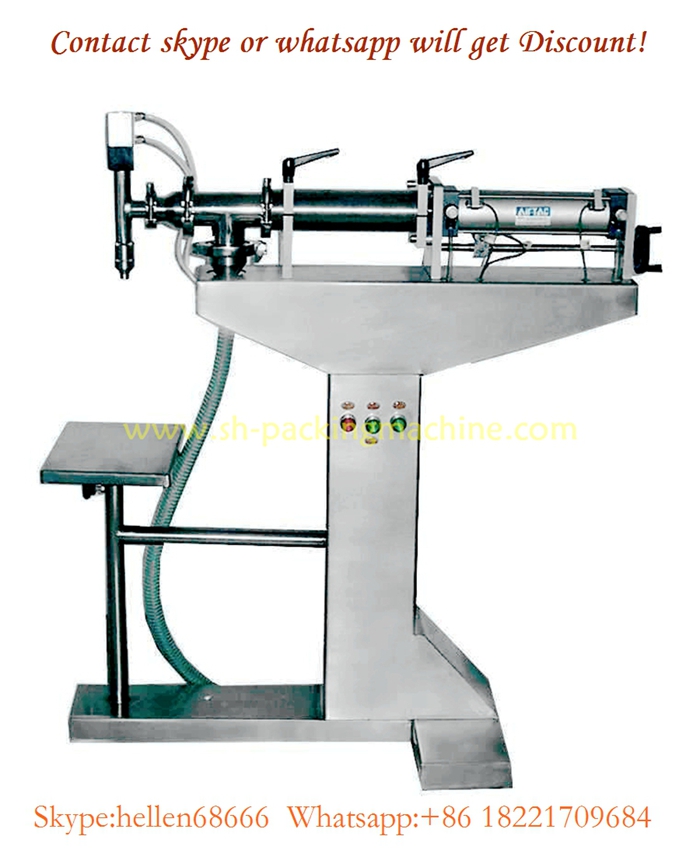

semi automatic vertical liquid filling machine,1L

Product name：semi automatic vertical liquid filling machine,1L

Item：USD1100

Price：USD1100

Details：

Product description:

Semi-automatic vertical Liquid Filling machine dispense a wide variety of liquid and semi-liquid products.
Which are ideal filling machines for the cosmetic, pharmaceutical, food, pesticide or other industries. This pure pneumatic machine is suitable for the explosion-resistant production environment due to it is operated by air only
, no electrical needed.

Product feature:

1. Machine made of SUS304, material touched parts SS316.

2. It’s a free standing type, with working stand.

3. Working with piston principle, poppet valve.

4. Pneumatic Parts adopt authentic AIRTAC, but FESTO and

SMC are optional.

5. A air compressor is necessary.

6. With high filling accuracy.

Technical Data:

Machine Model	Filling Range	Capacity	Accuracy	Air supply	Power Supply	Power
GF-G100	10-100ml	0-60pcs/m	± 0.5%	0.3-0.5MPa	220V/50Hz	10W
GF-G250	30-250ml	0-50	± 0.5%	0.3-0.5MPa	220V/50Hz	10W
GF-G500	80-500ml	0-40	± 0.5%	0.3-0.5MPa	220V/50Hz	10W
GF-G1000	100-1000ml	0-35	± 0.5%	0.3-0.5MPa	220V/50Hz	10W
GF-G5000	1000-5000ml	0-20	± 0.5%	0.3-0.5MPa	220V/50Hz	10W
