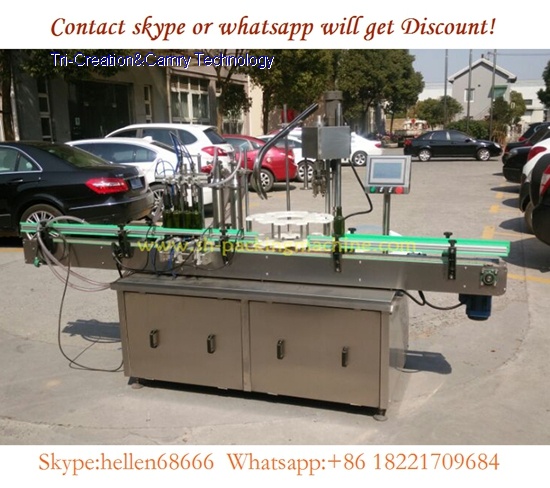

2 nozzles olive oil mono block machine,1L

Product description:

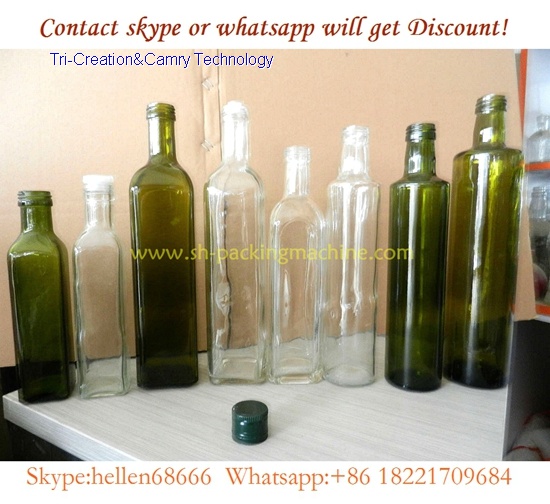

This machine adopt Germany advanced technology, it designed by our engineer for the liquid filling and cap pressing. Mainly suitable for 100---250ml round,square and abnormity bottle filling and capping.

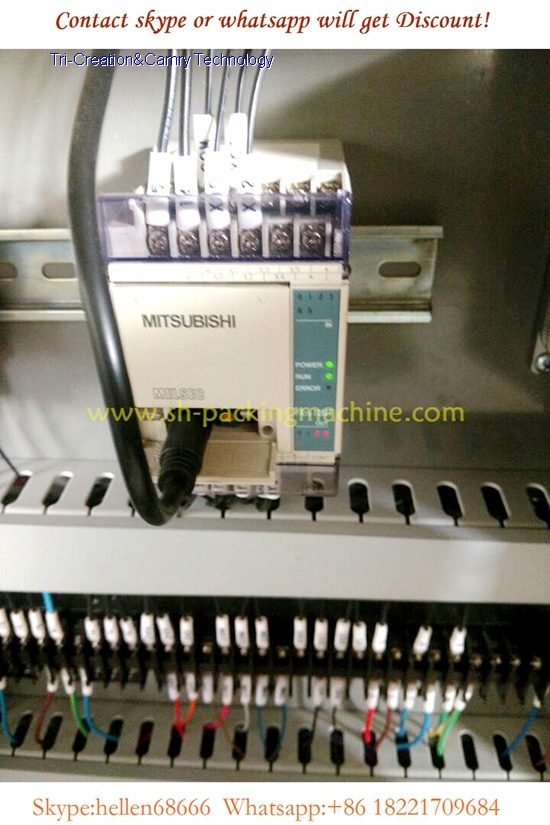

This machine adopt connectiong rod driving and injection pump filling, elimimated the normal chain pulling driving mode( the traditional driver is not easy to adjust the volume, with inconvenient maintenance, and easy to abrased chain) New filling driving mode are easy and fast to adjust the filling volume.only adjust one main driving rod, other injection pump will keep the same volume.the mated filling pump is 316L stainless pump,PLC control, high filling precision and eady to adjust filling volume.

This machine adopt Germany imported no oil bearing, no need to add lubrication oil the whole life, high rub resistance thrice to fourfold higher than copper bearing. With reasonable design, steady running,easy to operate and maintenance, accord with GMP standard, no bottle stop working, can be linked with bottle sorter and labeling
machine.Customerized filling head, after filling with no dripping.

Product feature:

1.Easy and intuitive operation and accurate measurement.

2.All electronic components adopt famous brand.

3.Easy operation,steady function and convenient maintenance.

4.Product contact part adopt 316L stainless steel anti-corrosion.

5.Outside material SUS 304,accord with GMP standard.

Technical parameters:

Filling volume: 100-250ml

Filling nozzle: 2 head

Capping: 1 head

Filling precision: ≤±99%

Capacity: 20-30bottles/min

Power supply: 220V/50HZ

Rate of capping: ≥99%

Voltage: 2KW

Machine weight: 1000KG

Machine dimension: 2400*1670*1356mm
