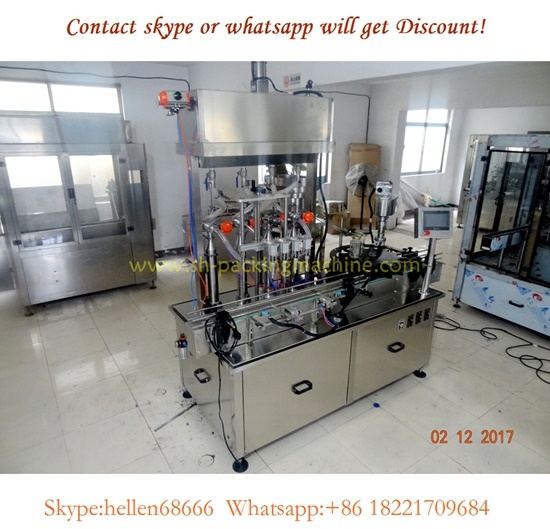

ketchup filling capping machine,sauce mono block,jam filling machine,4 nozzle




Product description:

Adopt the piston filling and air cylinder control, make the filling precision high and steady.
The star wheel automatic locating and sealing make the beautiful and secure sealing.
With compact machine structure,good-looking and easy to operate.

Adopt the photoelectricity to control the filling upper tank, while the product level lower
than the photoelectricity,the three-way rotary valve at the feed inlet will automatically open.
Customer need to prepare the pump feeding the product into the tank.
While the product over the photoelctricity, the three-way rotary valve will stop the feeding.

Adopt the magnetic control switch, PLC and touch screen to adjust the filling volume system.
With the pneumatic tank locating system.Customer can adjust according to different bottle.

Product features:

1,Adopt the mechanic drive, button control,easy to operate.

2,Adopt the air cylinder piston quantitative filling, with high precision and stability without spillover.

3,Filling volume and speed easy to adjust, with no bottle no filling.
4,The drip-proof filling nozzle make sure no wire drawing and no dripping.

5, The star wheel located sealing, with good sealing effect and high percent of pass.

6,Controlled by cam indexing, correct locating.The dial plate designed the overloading protect,
bottle stuck or down with automatic alarming system.

7,Adopt 304 stainless steel, meet with GMP standard.

Technical parameters:

 Working capacity:1200 bottles/H(for 690g bottle)

Filling range: 220-950G

Filling nozzle: 4 piston nozzles +capping head:1 head=monoblock.

Bottle shape: Round bottle

Bottle Dia.: 16-100mm  bottle mouth: 20-80mm(customerized)

cap unscrambler model:bowl feeder

air Gas:0.6Mpa   80L/min

Voltage: 1.5kw

Powder:110V 50/60HZ

​Machine size: 1700*1000*1900mm
