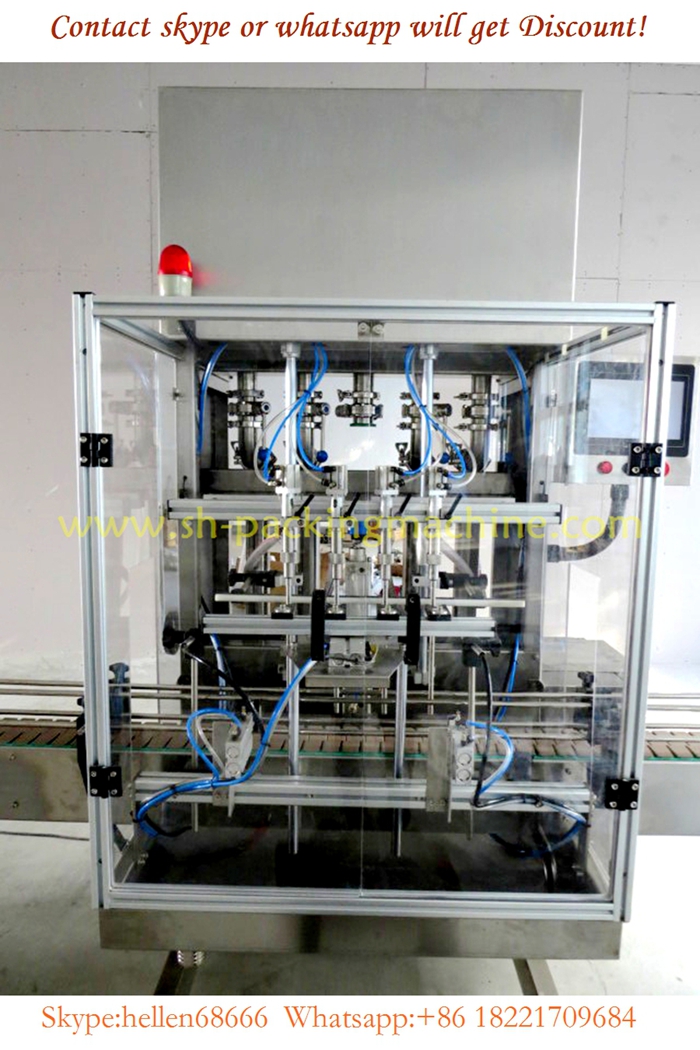

5L glass cleaner automatic filling machine,4 nozzle |
|
|
|
Product name：5L glass cleaner automatic filling machine,4 nozzle |
|
Item：USD11600 |
|
Price：USD11600 |
|
Details： |
|

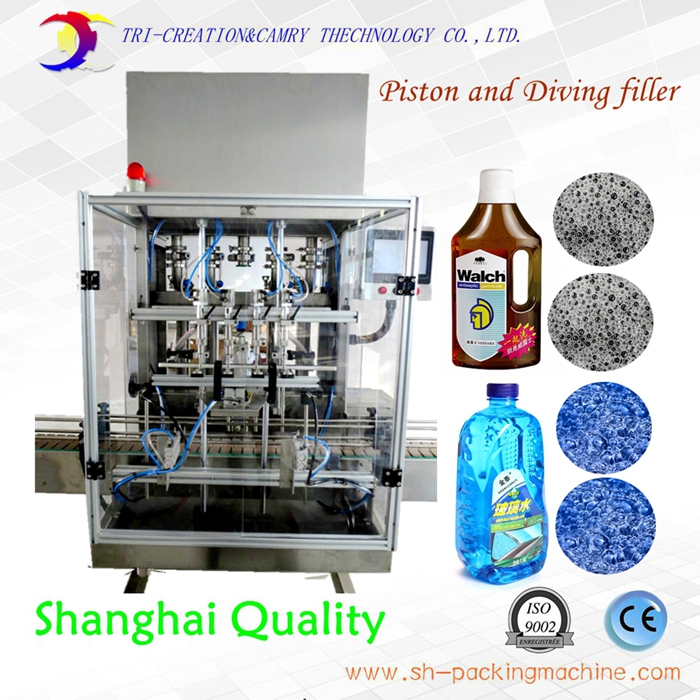

        Product description: Cosmetic automatic filling machine is designed into diving,piston model.it is to fill liquid edible oil,olive oil and foamy detergent.filling machine can fill sticky sauce,due to filler customized according to requests.click it to check the best price.it is from Shanghai packing machinery factory,with ISO standard,CE certificate and 316L material. Product feature:

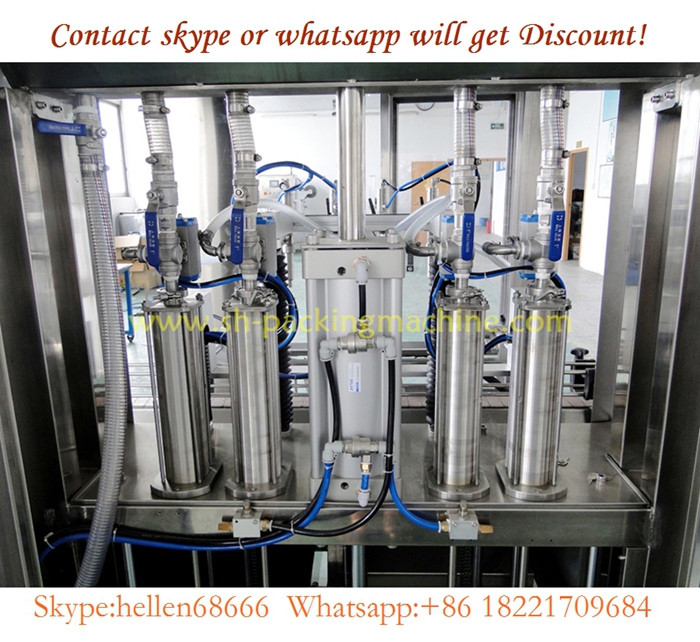

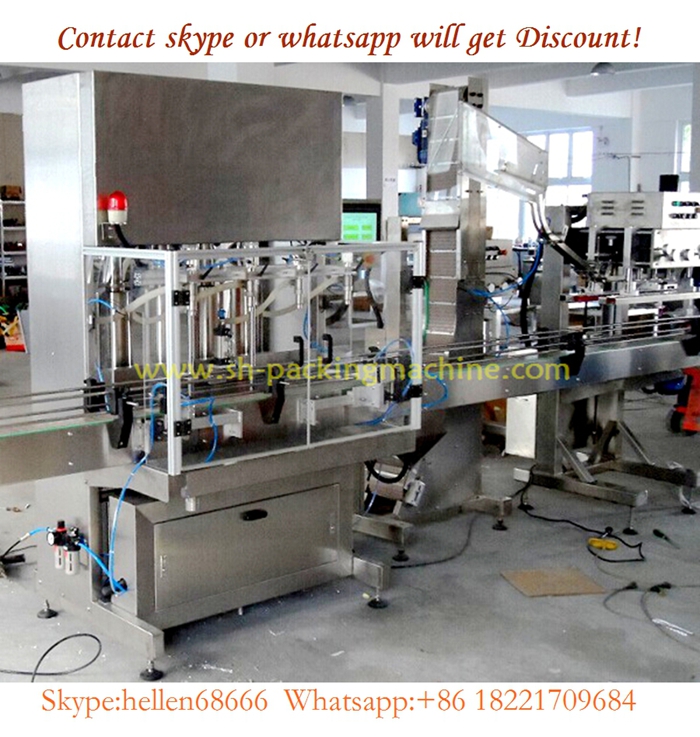

Adopt the electronic control air cylinder to be the filling driving force, after the bottle transport to the designated spot by the acting force of the conveying chain on the left of conveyor platform, the position air cylinder will fix position, the up and down air cylinder down, the filling nozzles diving and filling, the filling volume and time all proceed by setting, after fixed time delayed up and down air cylinder upgoing, the position air cylinder reset, the filled bottle will move to the right side by conveyor belt. It’s an entile operating cycle. Capacity:2000bottles/min Filling nozzles:4 heads The filling nozzle dive into the bottle mouth filling make sure no splash. Filling method:Positive displacement Adopt imported with original packaging fluororubber seal ring, anti acid-base, anti-corrosion, stand wear Filling volume:1L&4L Filling precision:repeatability precision ±0.5% Power:AC380V 50Hz Power:500W
Air supply:0.4-0.6MPa |
|
 |
