automatic bottle film shrinking labeling machine with electric tunnel

 Product description:

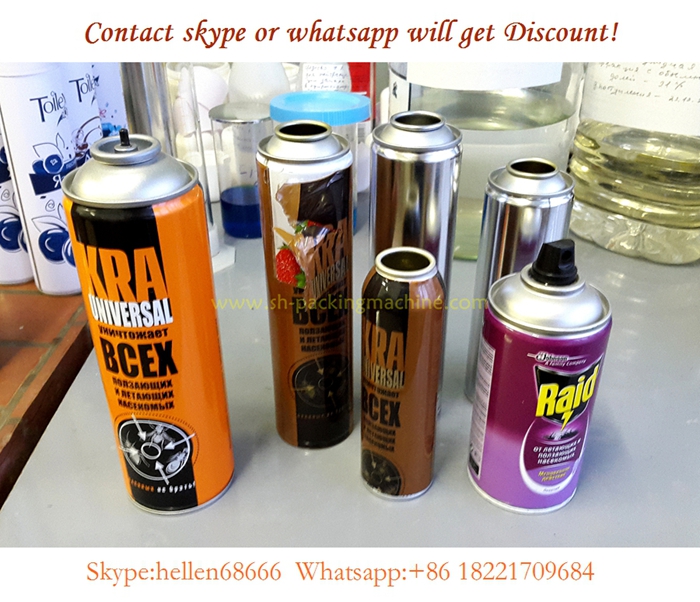

Automatic Metal/Glass Bottle Sleeve Labeling Machine is widely used in various round,square,oval bottles.automatically  feed film,cut film,slip on film,heat to shrink the plastic film.shrinking labeling machine is customized according to requests.click it to check the best price.it is from Shanghai packing machinery factory,with ISO standard,CE certificate.

Product features：

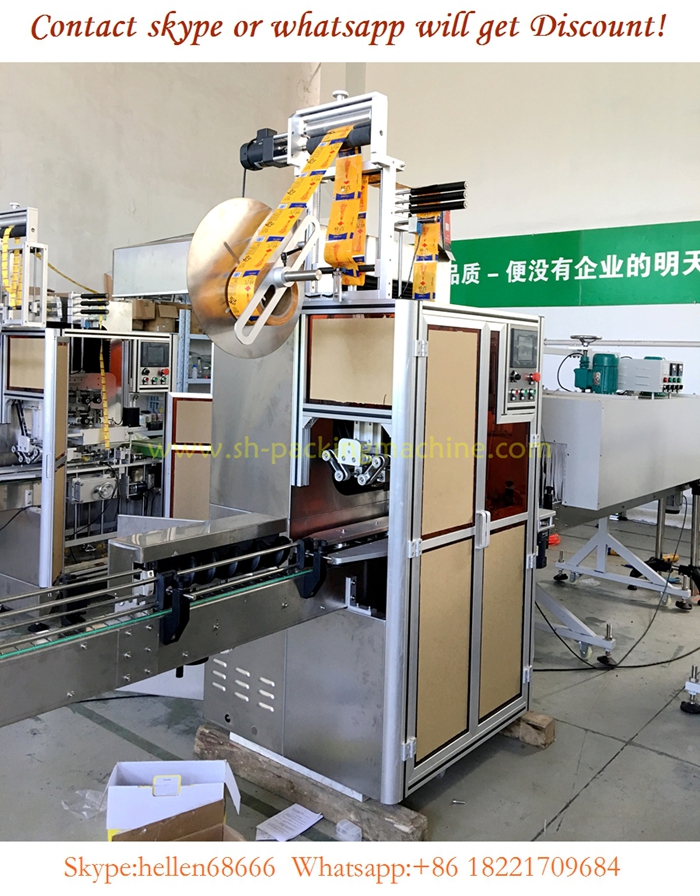

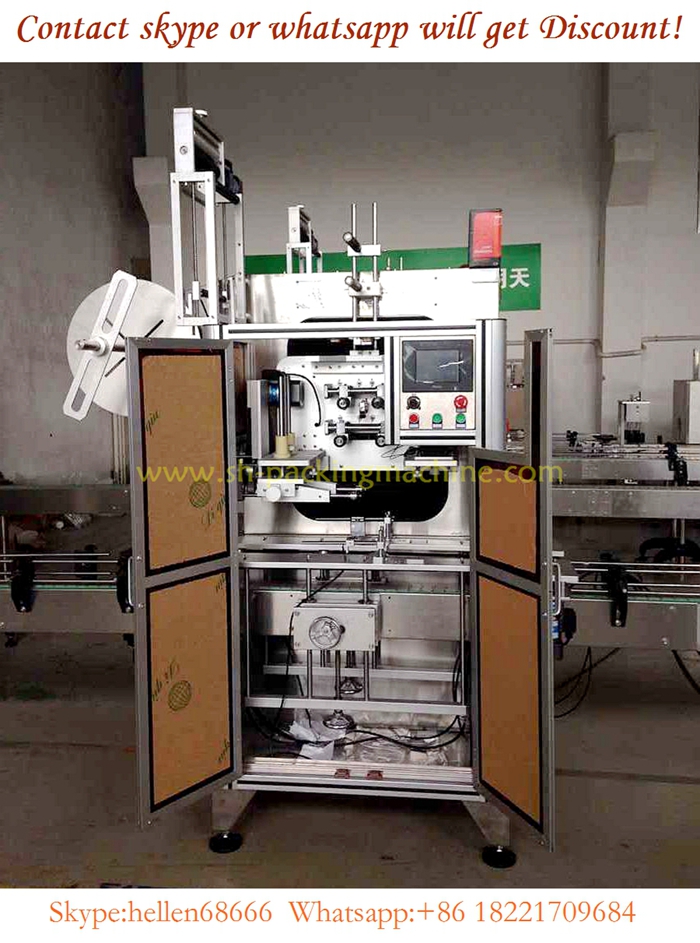

 1. Model: TBJ 150A auto label sleeving machine

 Synchronized transmission, any change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, it’s maintenance is easy and maintain is simple, so it doesn’t influence production.

  Unit cutter head plane design in China which apply to the container of 30mm—130mm.you never need to change or debug it. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products.

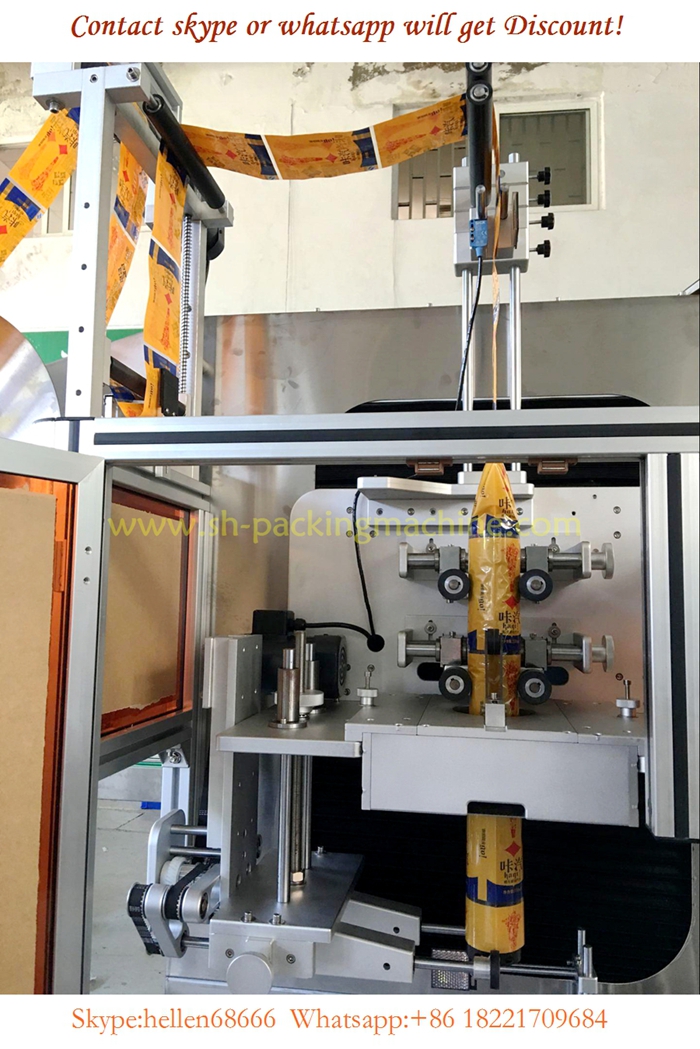

 Double shrinking label feed plane, reasonable height which is convenient to fix the label; micro-computer auto figure which avoid enactment and adjustment .you only need to press it lightly, the label will detect and locate automatically. The change of label is quick and convenient. Besides, the cutting place is absolutely exact.

    Label feeding equipment: driving synchronized control the supply of label, the supply ability is 90meters per minute, volume label supply plane is 500mm, the internal diameter of paper tube will be 4’, 8’, 10’ .the configuration of label feeding is stable which enable the exact length of label and the stable ,quick supply of label.

   The center pillar applies step by step shoot label structure and the speed is 170B per minute.

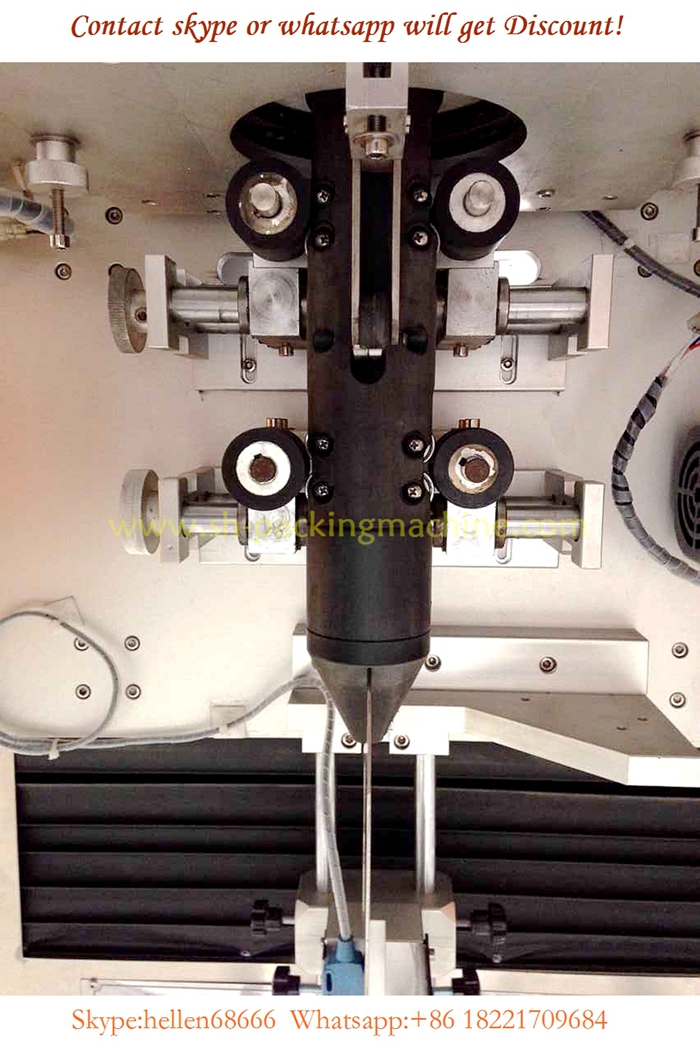

    The newly designed cutter head use step by step motor driving which speed is high, action is exact, the cut is in order and the shrinking is beautiful. This design cooperated with the label synchronized location structure enable the precision of cut location within 1mm.

    Multi-point emergency stop button enable emergency stop at the proper position along the production which guaranteed the safe production.

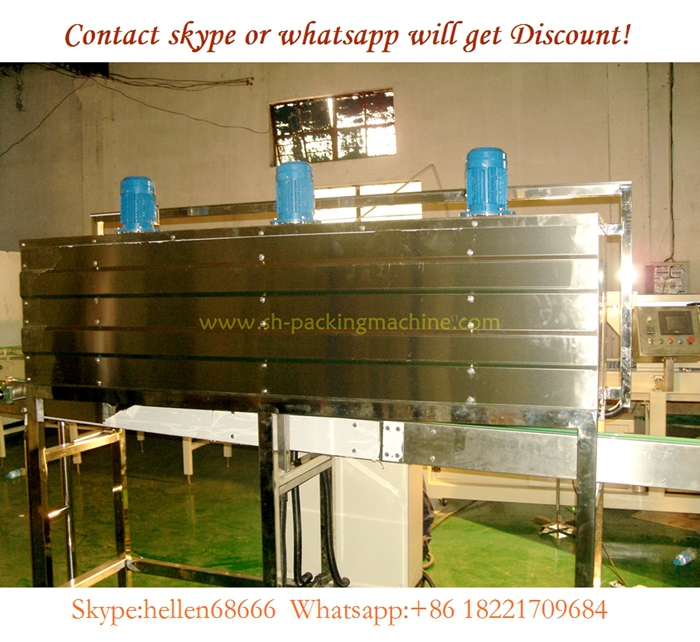

2. Model TBJ-150A Electrical tunnel

1. To apply to different and irregular round Bottles, square Bottles and flat Bottles etc, the new-style steam shrinking oven is easy to adjust and maintain.

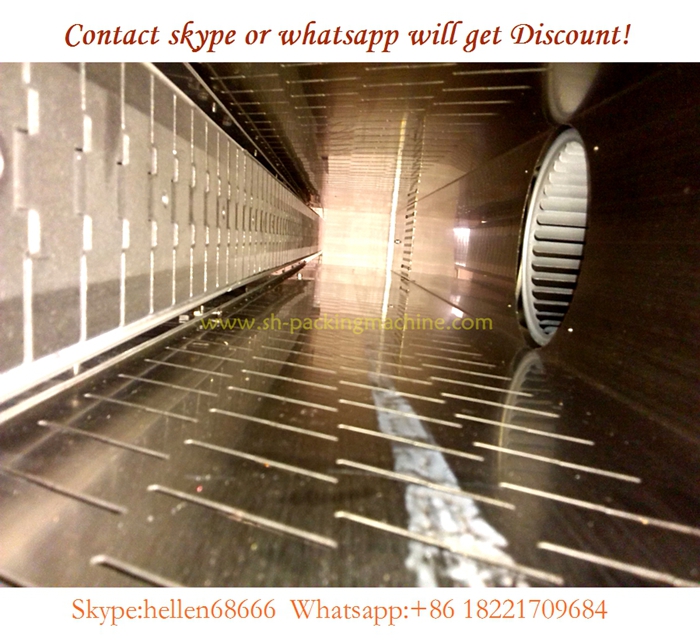

2.With a unique design, the three segments of the hot air shrinking tunnel is independent and adjustable , which has improved efficiency thus delivering a saving of energy.
3. After shrinkage, the outside of product has no water globules and it can be packed directly.

Technical parameter：

 Model TBJ-150A Electrical tunne

Technical parameters:

Power: 380 v/220V
power:13 kw

Delivery speed: 0-7.5 m/min
Packing materials: PVC/POF/PE
The motor load: 20 kg
Furnace size (length * width * height) : 1220 * 480 * 280 mm
Overall dimensions (length * width * height) : 1600 * 610 * 1300 mm
