bottle film heat shrink labeling machine with electricity tunnel

Product description:

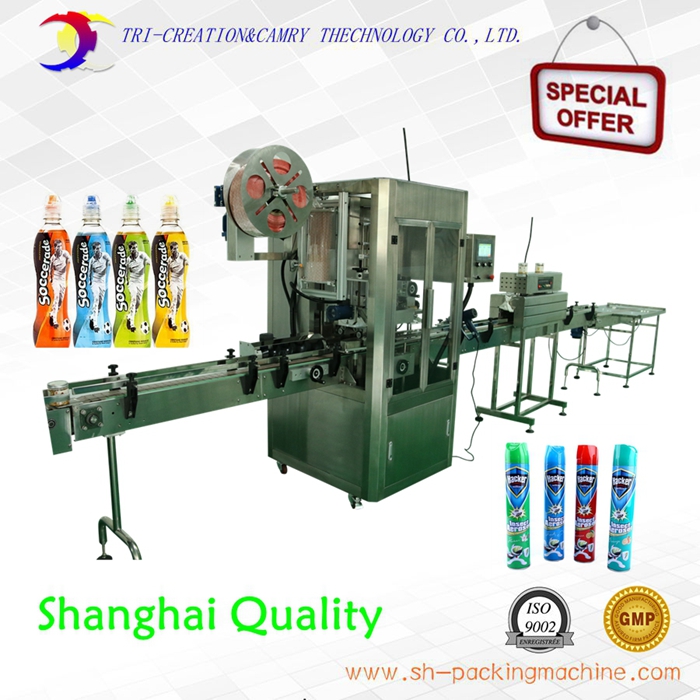

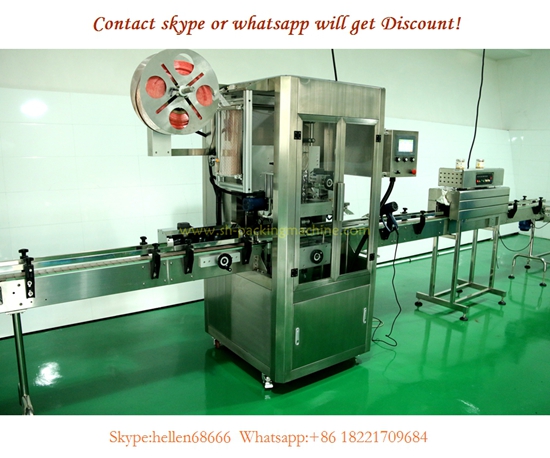

 Automatic Bottle Sleeve Labeling Machine is widely used in various round,square,oval bottles.this machine can automatically feed film,cut film,slip on film,heat and shrink the plastic film.this labeling machine was customized according to requests.click it to check the best price.it is from Shanghai packing machinery factory,with ISO standard,CE certificate.

Product features:

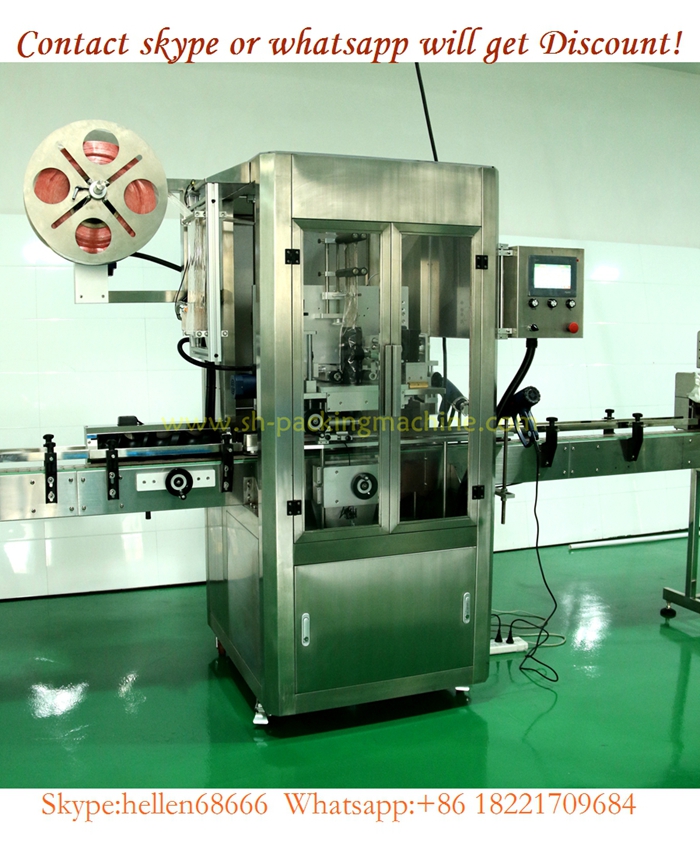

1. Model: TBJ 150B auto label sleeving machine

 Synchronized transmission, any change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, it’s maintenance is easy and maintain is simple, so it doesn’t influence production.

  Unit cutter head plane design in China which apply to the container of 30mm—130mm.you never need to change or debug it. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products.

 Double shrinking label feed plane, reasonable height which is convenient to fix the label; micro-computer auto figure which avoid enactment and adjustment .you only need to press it lightly, the label will detect and locate automatically. The change of label is quick and convenient. Besides, the cutting place is absolutely exact.

    Label feeding equipment: driving synchronized control the supply of label, the supply ability is 90meters per minute, volume label supply plane is 500mm, the internal diameter of paper tube will be 4’, 8’, 10’ .the configuration of label feeding is stable which enable the exact length of label and the stable ,quick supply of label.

   The center pillar applies step by step shoot label structure and the speed is 170B per minute.

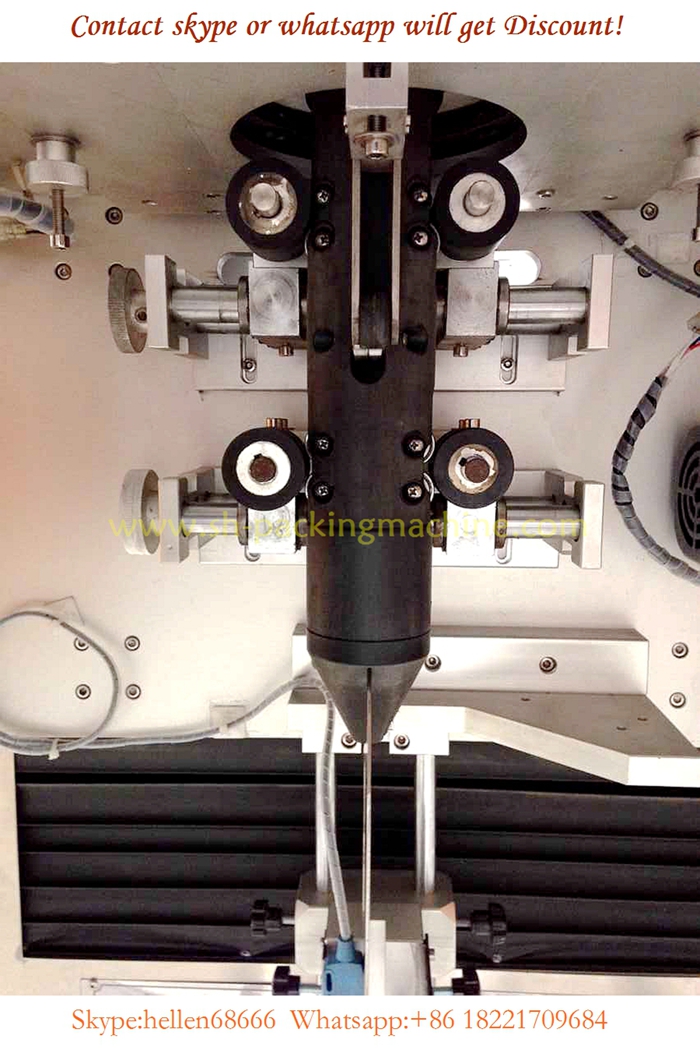

   The newly designed cutter head use step by step motor driving which speed is high, action is exact, the cut is in order and the shrinking is beautiful. This design cooperated with the label synchronized location structure enable the precision of cut location within 1mm.

    Multi-point emergency stop button enable emergency stop at the proper position along the production which guaranteed the safe production.

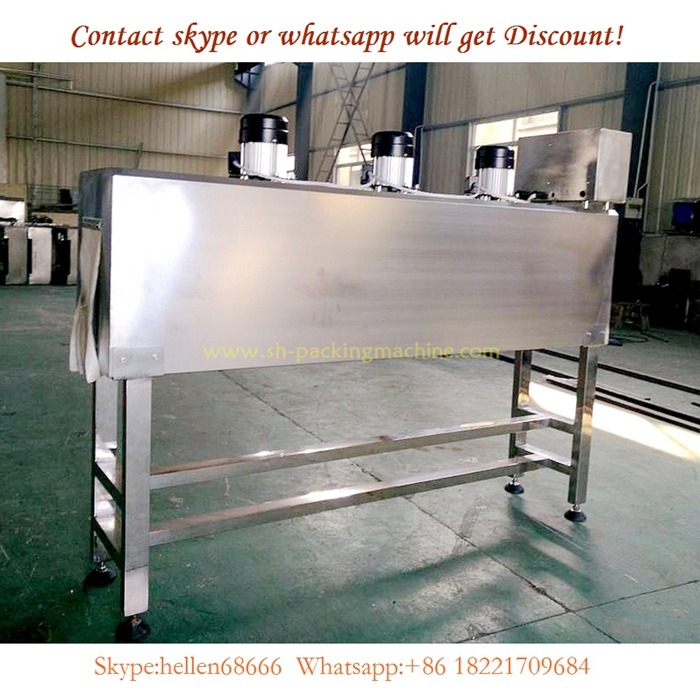

2. TBJ-2000 Steam Shrinking Tunnel

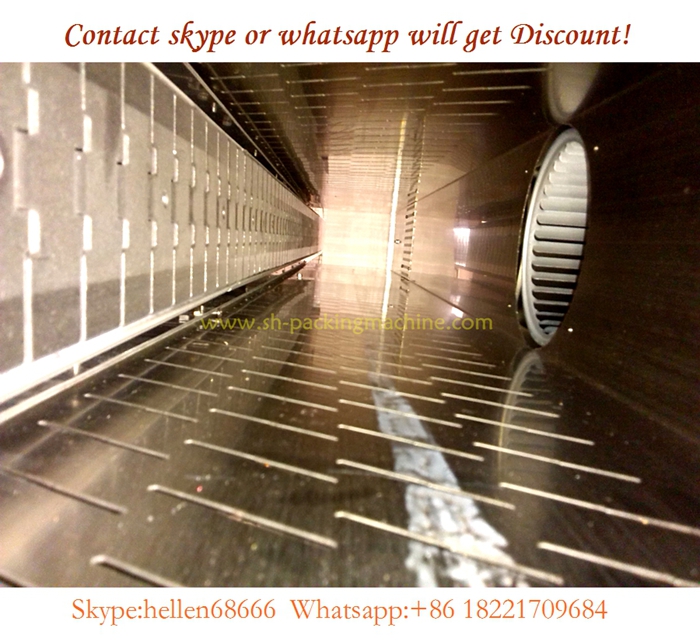

In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style steam shrinking oven is easy to adjust and maintain. It has an even shrinking. The distribution of low-pressure steam drum and spouting way of steam are uniform and designed with seamless tube. The nozzle is divided to be adjustable three segments and the height , position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking. The whole machine is made of stainless steel with heat preservation , which not only saves energy ,but also complies with the international safety standard .The stainless steel defrosting tray collects condense water. The whole machine adopts the water-proof design with the convenience of easy operation and low maintenance.

Technical parameters:

(2)TBJ-2000 Steam Shrinking Tunnel
