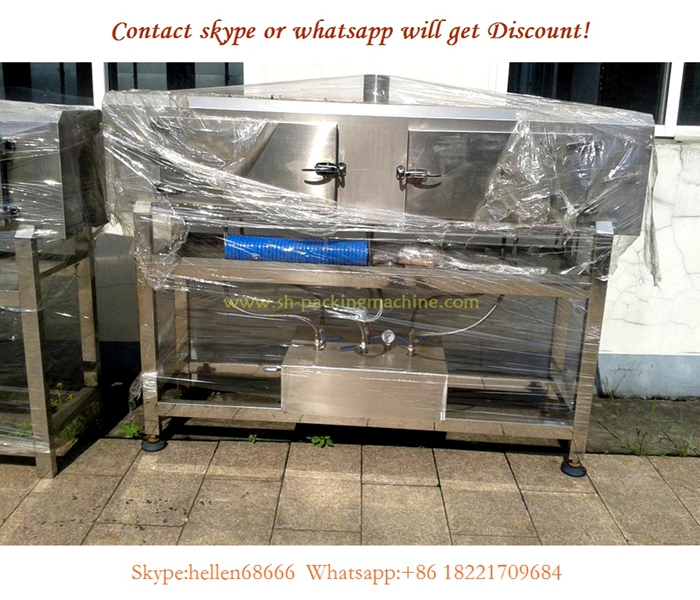

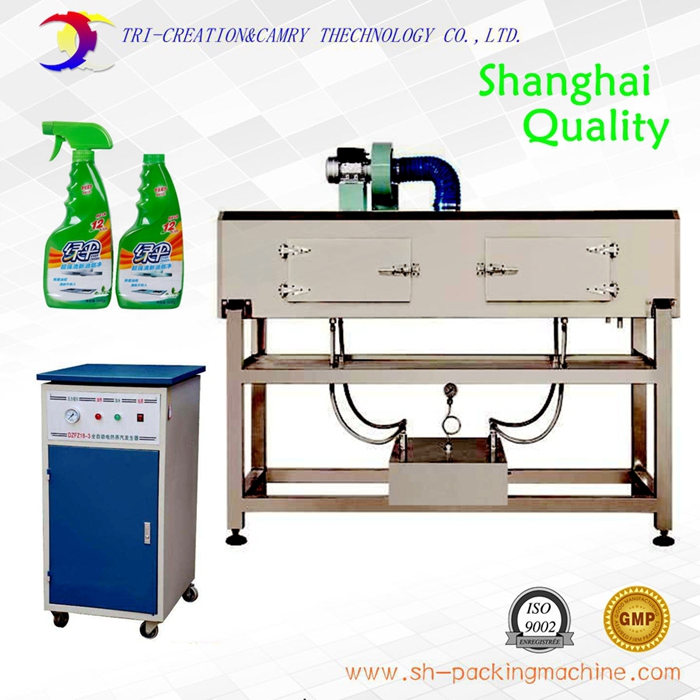

bottle film steam shrinking tunnel with steam generator

Product description:

Steam bottle film shrinking tunnel/oven with steam generator is widely used in various round,square,oval bottles.automatically heating to shrink the plastic film.bottle film sleeve machine is customized according to requests.click it to check the best price.it is from Shanghai packing machinery factory,with ISO standard,CE certificate.

Product features:

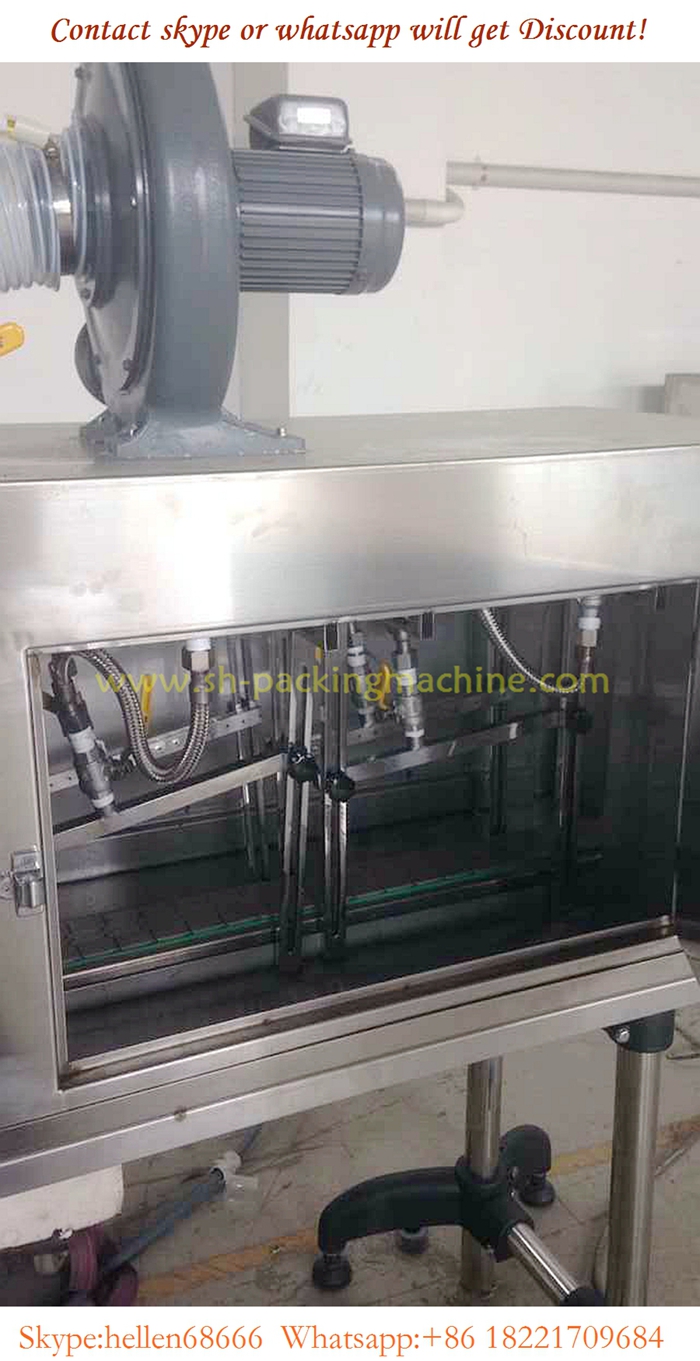

In case of different and irregular round bottles, square bottles and flat bottles etc, the new-style steam shrinking oven is easy to adjust and maintain. It has an even shrinking. The distribution of low-pressure steam drum and spouting way of steam are uniform and designed with seamless tube. The nozzle is divided to be adjustable three segments and the height, position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complies with the international safety standard. The stainless steel defrosting tray collects condense water. The whole machine adopts the water-proof design with the convenience of operation and maintenance

Technic parameter:

Based on the original configuration, double layer holding furnace is manufactured to take effect on energy saving and environmental protection.

Input Power Supply of Blower: 12  0.75KW

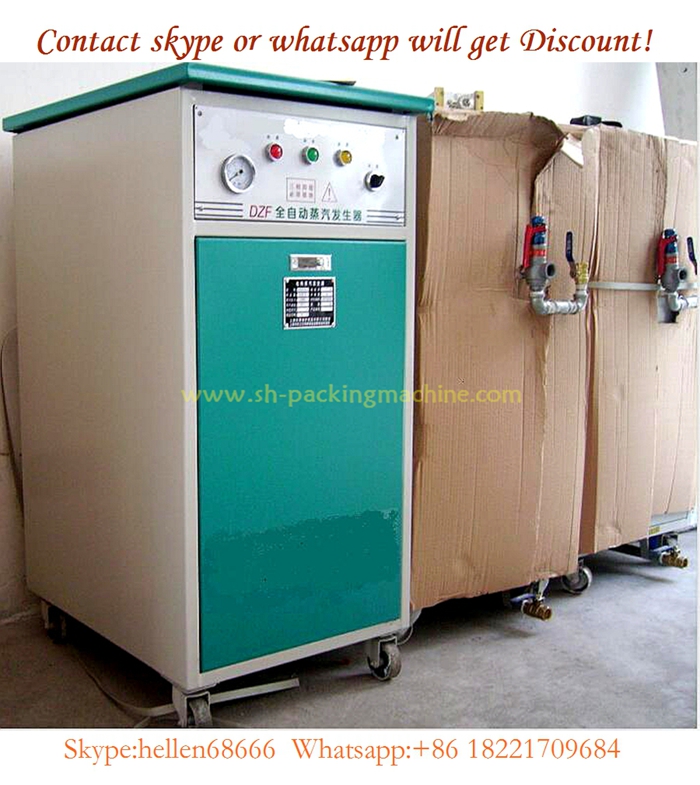

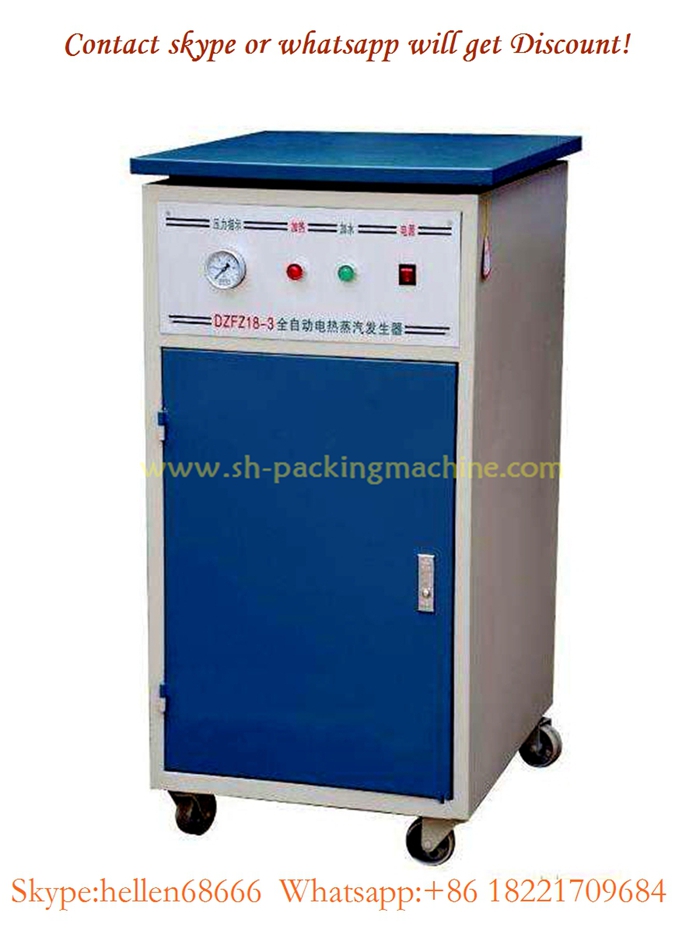

Input Power Supply of Steam Generator:380V/220V/50Hz/60Hz


Working Pressure: ≤0.2Mpa


Weight: 230Kg

Steam Consumption: 24Kg/h

Size of Oven Body: L1200*W400*H1500

Transporting Speed:0-35m/min
