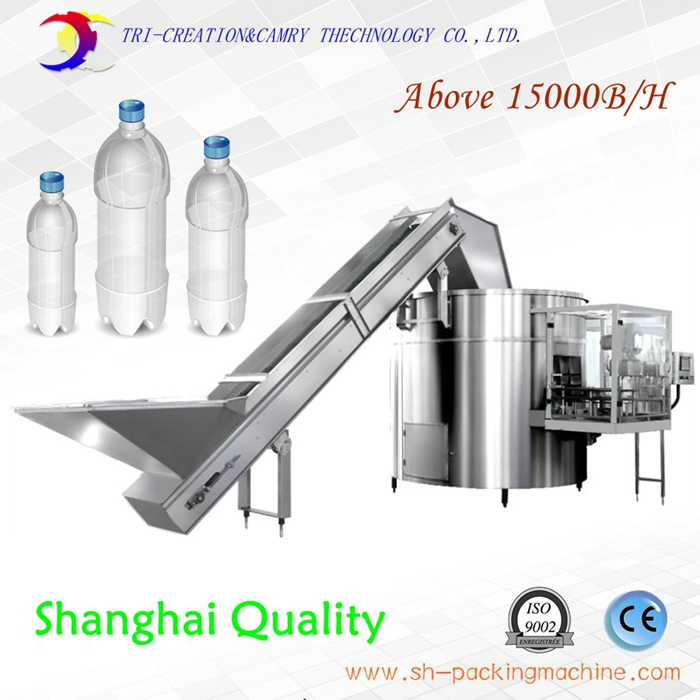

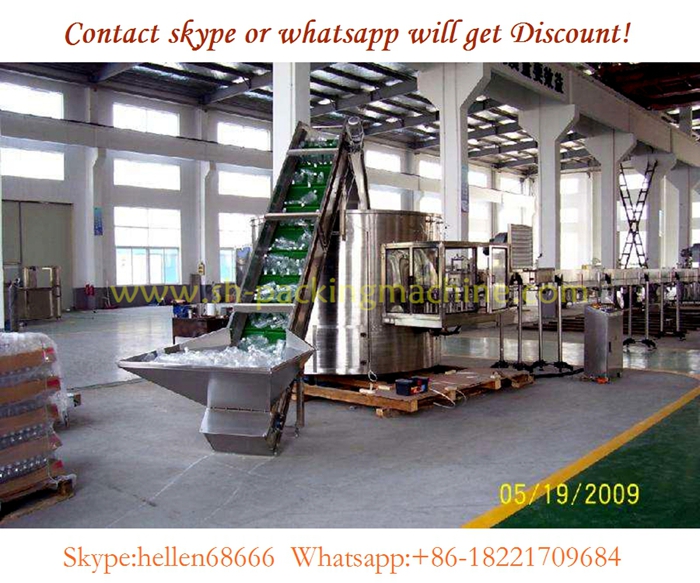

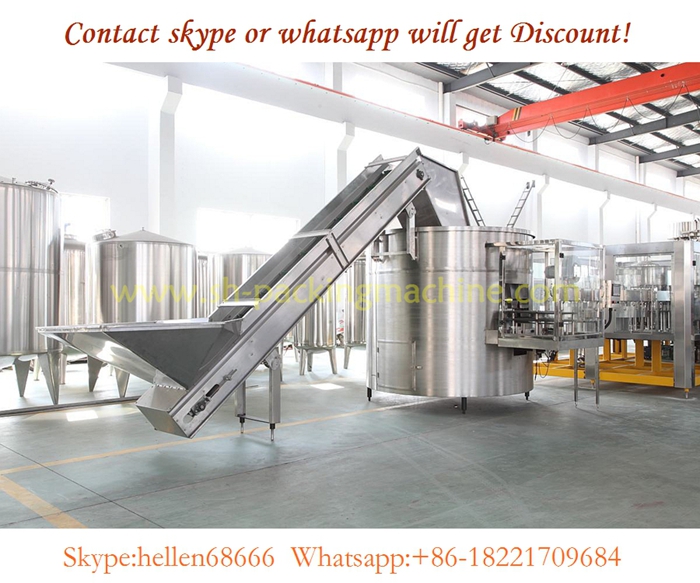

automatic bottle unscrambler machine with elevator,high speed

Product descriptions:

The Automatic Bottle Unscrambler / Unscrambling Machine is used in ordering disordered polyeter bottles, the disordered bottles are carried into the storing bottle Section of the ordering bottle machine, with the help of the pushing force of the rotating disk, the bottle are ordered into Bottle mouth-up-position and are carried into the next process with the air-transfering type conveying bottle system.
High speed operatin, easy to combine with all kinds of filler or filling prodution line.

Product Features:

1) Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur.

2) Two put-casts in one cycle ensure that every work location should be with one bottle, which enhances bottle output efficiency.

3) The bottles are neck locked through the air conveyor so as to avoid overturn in delivery.

4) Dilapidated bottles will be eliminated by a special device.

5) A lock detector is equipped for alarming; when locked, the machine will automatically stop.

6) A photoelectric switch is set for starting when there is no bottle and stopping when there are bottles.

7) An oil pump will readily fill up the gears, bearings and the cams.

8) Maintenance doors and mould replacement door provided.

9) Mitsubishi, Omron and Simons provide the main electrical components; Such as transducers, PLC,

photoelectric switch and relays.

 10) Machine outer tank,revolving tank and meet the bottle part are all stainless steel AISI304. Frame part adopts high-grade carbon jointing.

Technical parameters:
