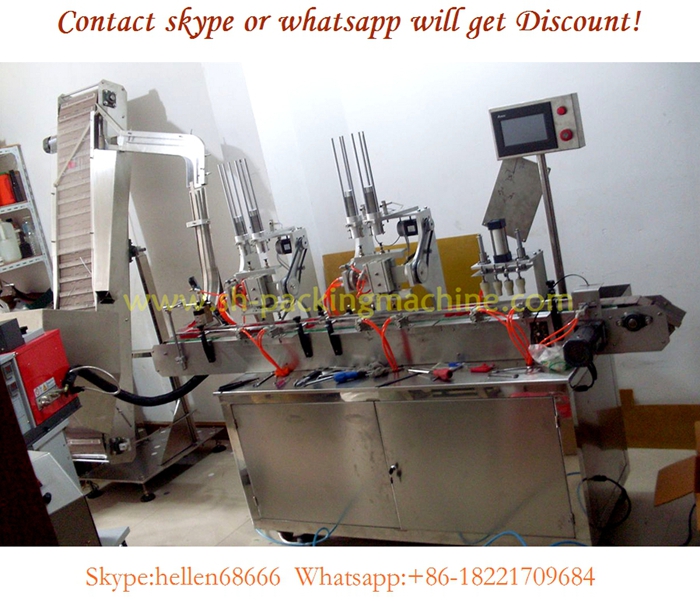

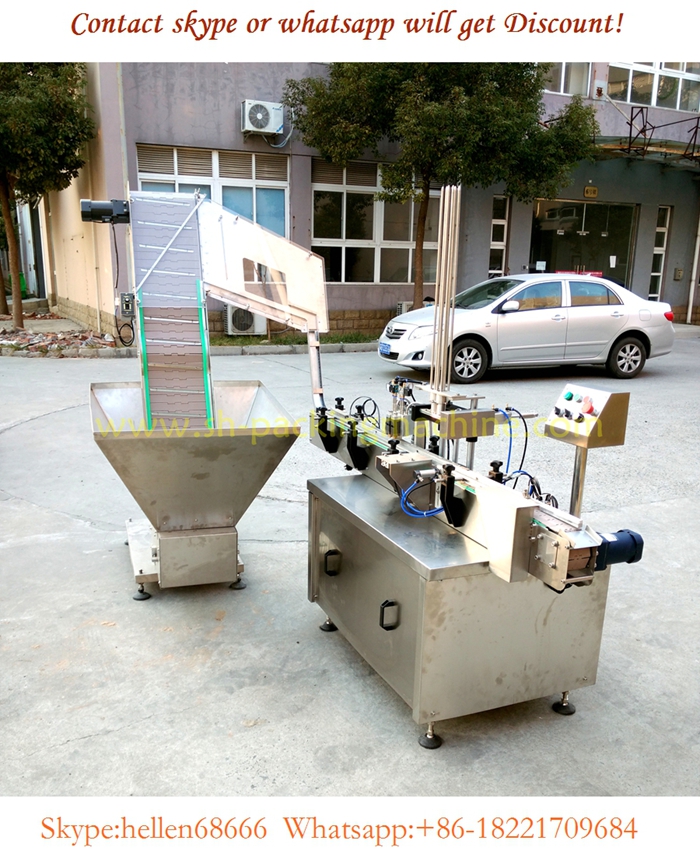

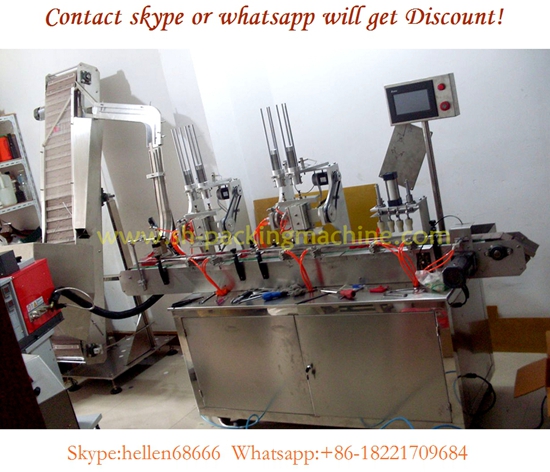

automatic cap sorter elevator,bottle cap bucket unscrambler

Product description:

This automatic cap elevator is designed to enhance the cap cover machine cover for use, supporting the use of machine with Capping. As it changes, they can be used to upgrade other hardware goods transportation, more than one machine can be used. This machine can complete capping machine use, using an alternative way to cover the bottom of tin manual, the automatic work more convenient, fast. The device structure is simple, is the ideal production line auxiliary equipment. It is normally used in glass bottle beverage production line, as it is full automatic, so it will be human resource save in the total beverage production, no need people put the caps into the cap box.

We are the unique factory that can produce high quality Multi-function cap elevator.we produce the elevator feeder for 20 years.Multi-function cap elevator feeder can Automatic sort many kinds of caps on the same feeder. this feeder in the video unscramble 4 kinds of  size round caps,only need to adjust the slide of the elevator feeder. due to its high-performance,it can adjust its elevator feeder angle.machine is constituted by stainless steel 304 materials.Its straight orbit can be made in any length, with its providing ratio above 50-100 bottle/min.

Product Features:

1, Capping Machine adopt the mode of one motor controls one capping wheel, which can ensure the machine to work stably and keep consistent torque under long term working condition

2, the clamping belts can be adjusted separately, which allow the machine to suitable for capping bottles with various heights and shapes

3 ,if you choose the optional cap guiding system together with the machine ,it will then also fit for pump caps

4 ,the convenient construction adjustment system is equipped with precious ruler and counter

5, Capping machine can be lifted and descended automatically by a motor

 Technical parameters:

Model bottle cap elevator

Capacity 50-200bottle/min (subject to bottles and cap)

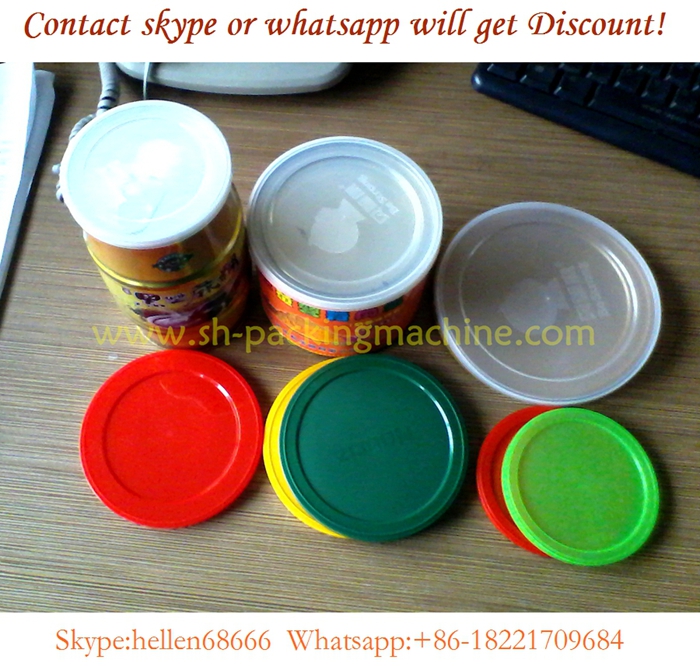

Cap diameter  20-120mm

Bottle Height 40-460mm

Cap type Plastic cap

Power 1600W

Weight 200Kg

Dimension 1060mm*900mm*1600mm
