Product description:

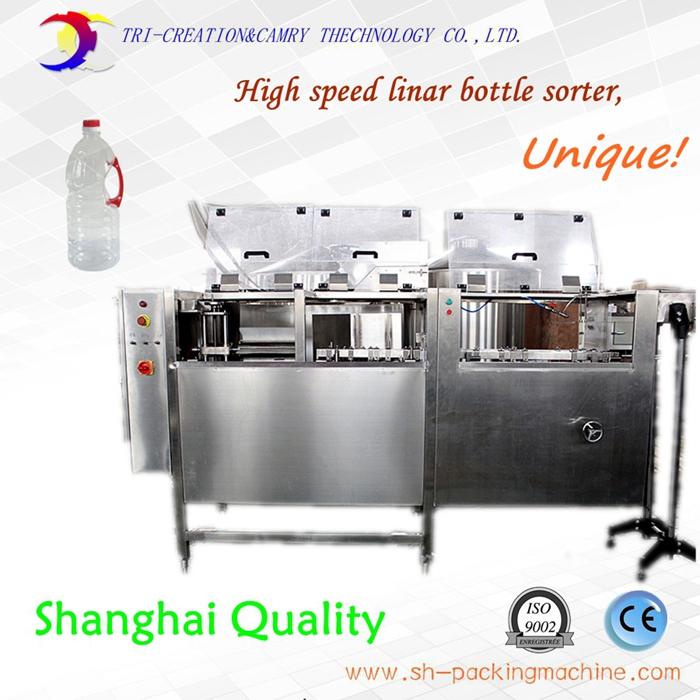

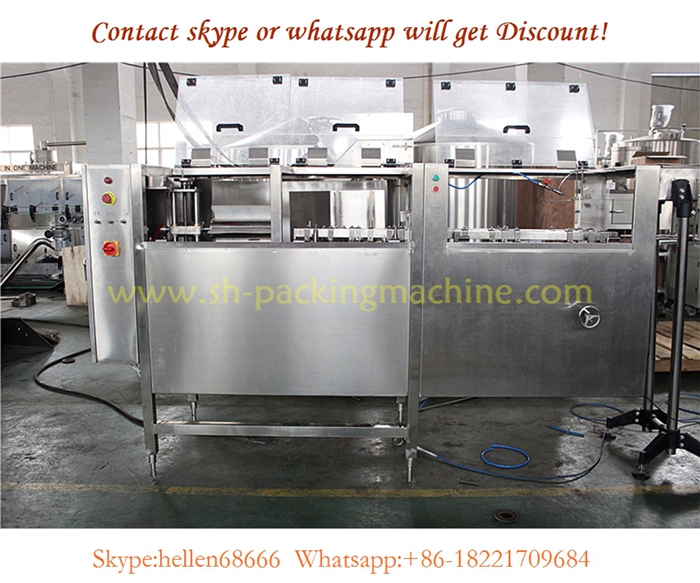

We are the unique factory in China.that can produce high speed Linear PET/ PE bottle Automatic unscrambler machine.we produce the feeder for 20 years.it is designed and manufactured ourselves based on Italy advanced technology in the beverage producing field. It is used for settling the disordered PET bottles, which will be conveyed to production line.Electrical and pneumatic system use export parts. The whole system is controlled by PLC programming, low failure rate, high reliably. This machine is suitable for 100ml ~2500ml Plastic bottle. If bottle shape is changed no need the change part
Product features:
Put bottle from bottle storage place to bottle hopper by manual, bottles will be lifted to arrange bottle tank via belt, then enter into big bottle sorting rack via rail by bottle guide rod. Bottles will inverter and slide down from big sorting rack, then enter into air conveyor rail via star wheel, and then enter to bottle chain conveyor. The whole process is controlled by PLC.

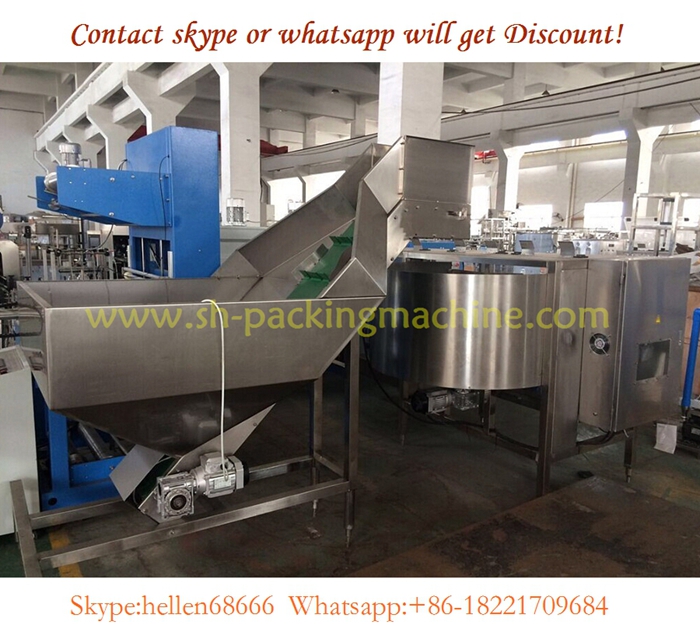

The elevator consists of bottle storage hopper, elevator belt, machine frame. The elevator structure motor is controlled by bottle unscramble bottle feed inspection device.

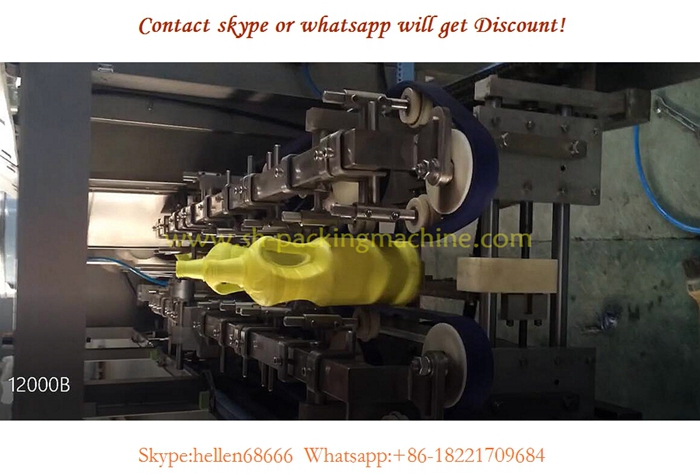

The arranging bottle mechanism is composed of main machine, bottle rack and star wheel. Main machine will feed bottle into bottle rack, the bottle rack will inverter bottle into right direction, feed them into star wheel, and then feed the bottles into conveyor
Technical parameter:
![*]()
productivity: 150BPM 1L-2.5L
![*]()
Air source pressure: 0.6MPa
![*]()

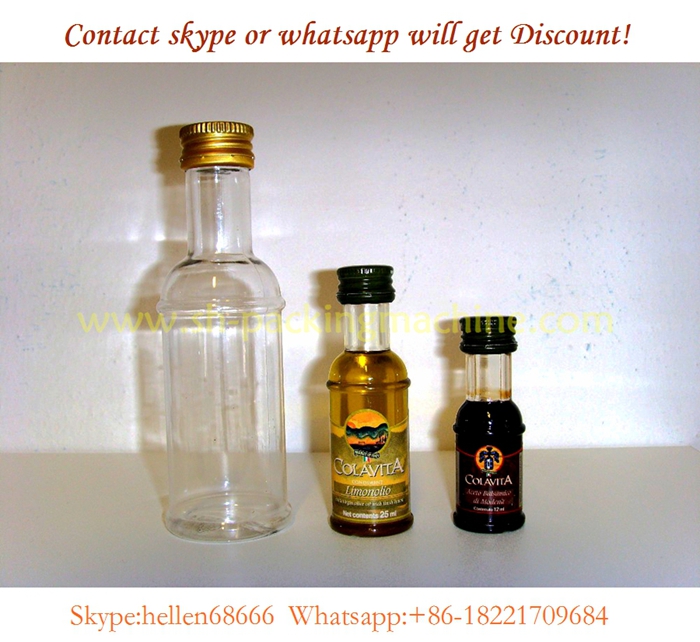

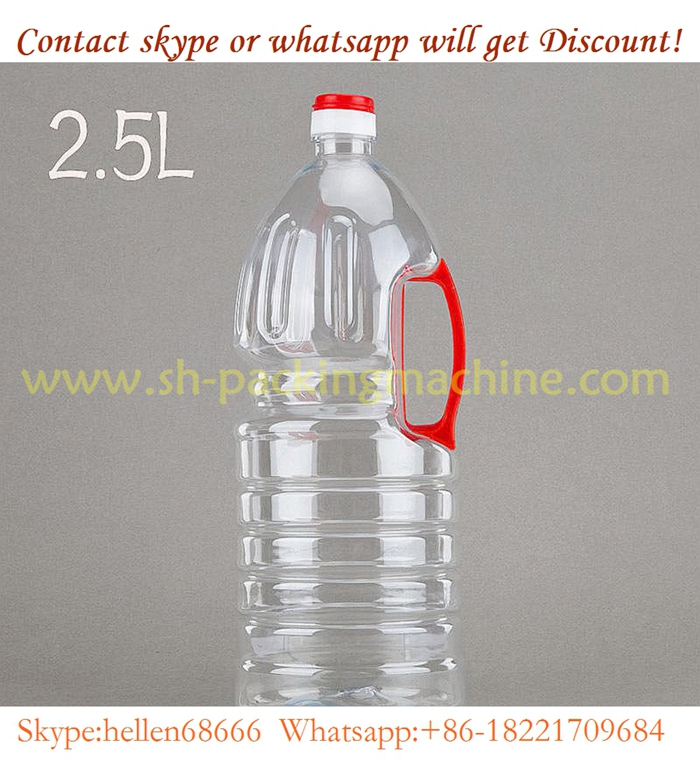

Adaptive bottle type: diameter 50mm-150mm,high 165mm-290mm
![*]()
Air consumption: 1.5M3/ min
![*]()
The power of main motor: 7.5KW
![*]()
Dimension: Φ2500*2600*1250MM
![*]()
Weight: 1000Kg
