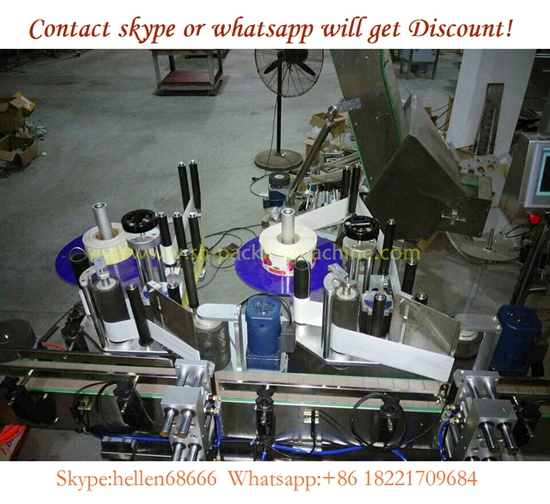

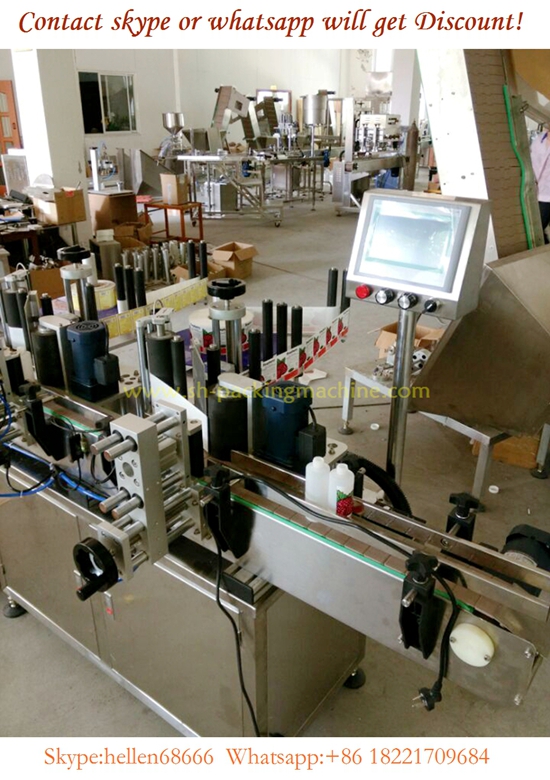

two heads round bottle location labeling machine

Product description:

Two heads round bottle location labeling machine is suitable for glass bottles, plastic bottles and other cylindrical objects.Cone of objects can be customized.

Product features:

1  in accordance with the product can be mounted to the printer or spurt the code machine.
2  Two label heads can both opt to independently operate and in the same time work.

3 autmatic loctate the bottle and pricise label bottle.

4 .the PLC opt one model with the etherlink, so can be comunication with another PLC

5 . all the label machine are 110V AC 60Hz

Technical parameters:

(Machine Size)2000mm*1300mm*1550mm

 (Output Speeed) 30-40pcs/minute

 (Hight Label Object(mm)) 10-280mm
 (suitable the bottle diameter)25-120mm
 (Label Hight) 15-160mm
 (Label Length) 20-300mm
 (Pastes the sign precision)±1mm

 (Roll inside) 76mm
 (Roll Outside Diameter) 320mm
Power Supply:110V 1.5HP  60HZ p class=MsoNormal>6. all the label machine are 110V AC 60Hz

Optional accessories:

S printer (Max speed up to 200 bottles/min)
S spurt the code machine (Max speed up to 200 bottles/min)
