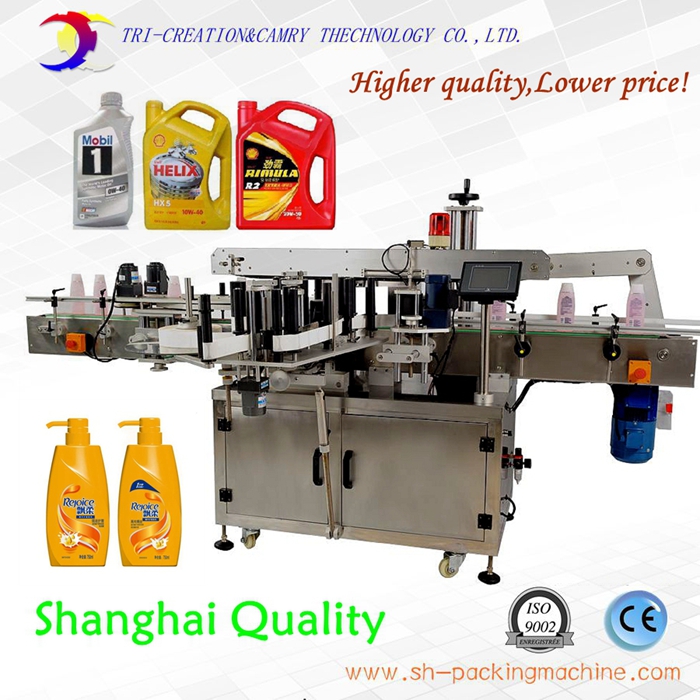

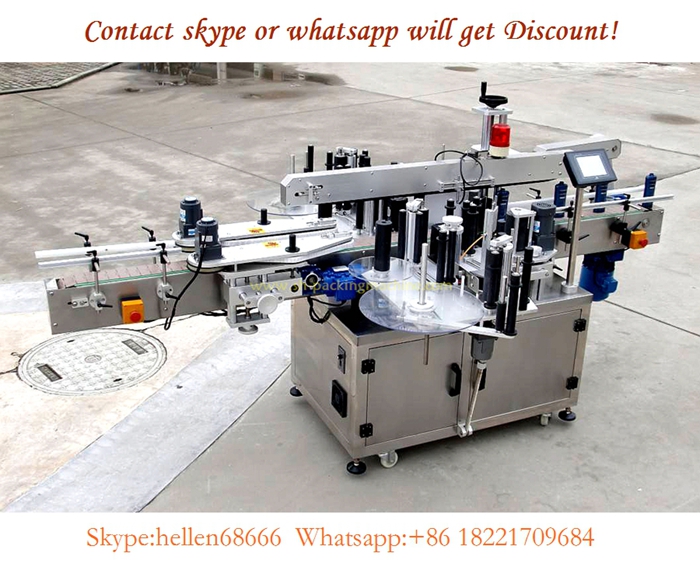

Automatic front and back bottle labeling machine,flat bottle

Product descriptions:

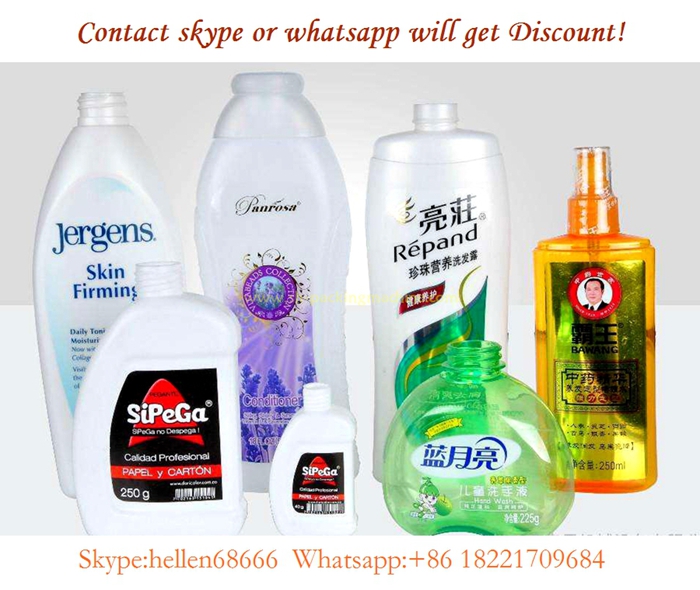

suitable label: adhesive label, adhesive film, electronic supervision code and bar code etc.suitable product: the product with the side and plane, side and big radian side,circle face and square circle face etc.Scope of application: food stuff,toy,cosmetic,electron,medicine,hardware,plastic and printing industries etc.Example: shampoo flat bottle labeling,lubricating oil flat labeling,shampoo round bottle labeling etc..

Product Features:

 Whole machine adopt the mature technology PLC control system, make the machine work steady and fast.

 Touch screen control operation system, convenient,practical and high efficiency.

 With screw adjust pressing mechanism, precise acting.

 Synchronization chain mechanism make the adjustment steady and precisely.

 Wide range of application, multi-purpose and strong adaptability.

Advantage:

 Powerful function, one machine can realize 4 products labeling(square, round,flat and dysmorphic bottle).

 Smooth,crease proof,free of bubbles labeling, high precision,efficiency and good stability.

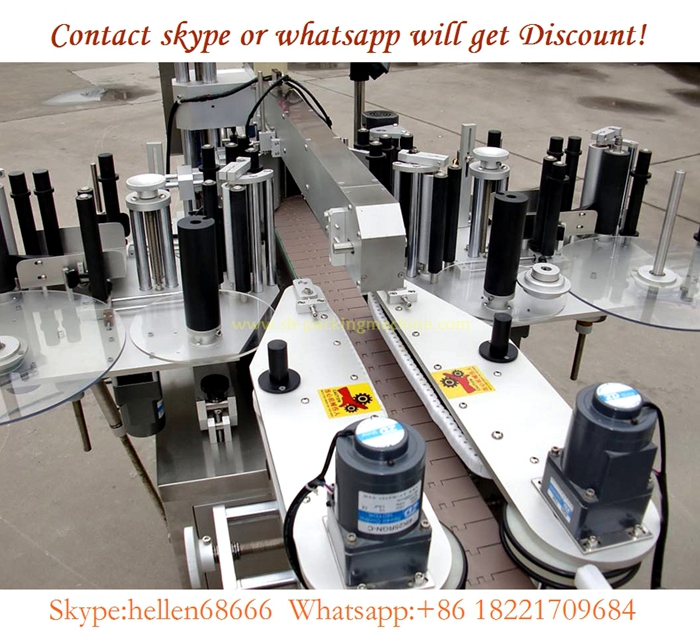

 Adopt the flexible adjust pressing and guiding mechanism,mechanism adjustment structuralization and clever design for the label winding,convenient fine turning the labeling location(can be fixed after adjust),make different products labeling adjustment easier and timesaving.

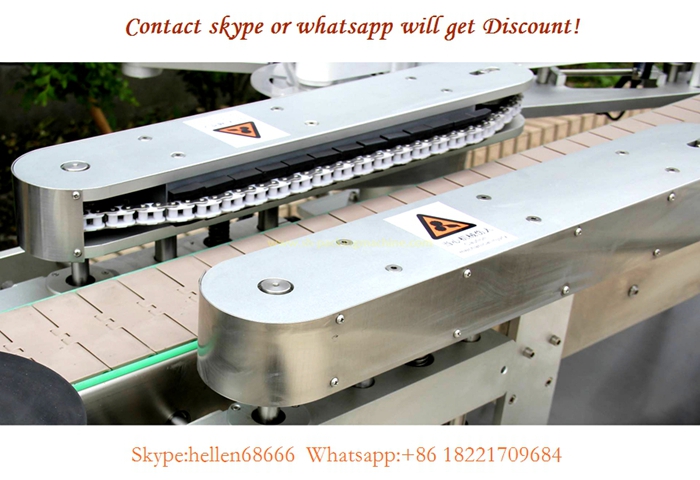

 For flat,square and cambered bottle, adopt the double side rigid plastic synchronous guide chain to promise the simple requests for bottle putting and line connection and lower the man operation and line connection difficulty.

 No bottle no labeling, no label automatic adjustment and measuring function.

 Can be used independently and linked with production line.

 The main equipment material is stainless steel and high grade aluminum alloy, sound construction and elegant appearance.

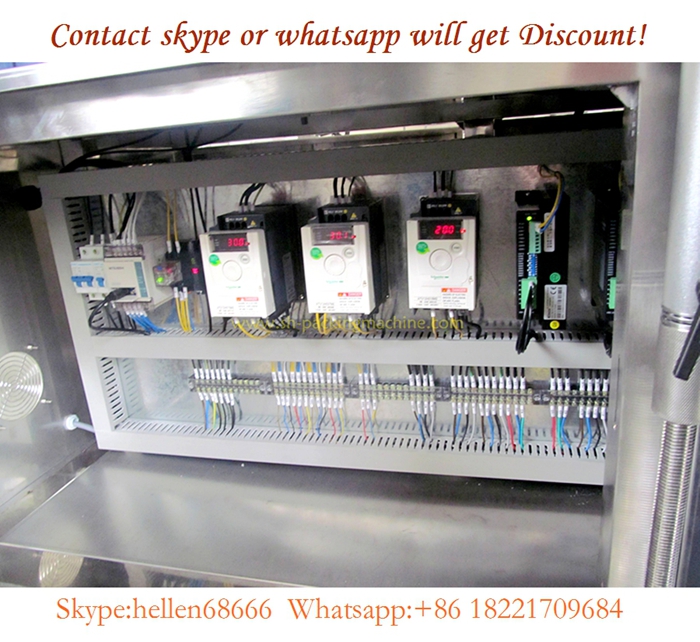

 Adopt standard PLC+touch screen+transducer electronic control system, interactive interface and disturbance hint function,operation teaching function;easy and convenient maintenance.

 Impeccable equipment documents( include equipment structure, principle,operation,maintain,keep in good repair,upgrade etc. Instruction) provide a sufficient guarantee for machine normal operation.

 With failure warning function, auto-counter technology,power saving function(the equipment will automatic turn to power saving holding state while no production in setting time),the production number setting hint function and parameters setting protection function(parameters have authority management)

 Option function and component: ink-jet printing machine, automatic material loading,automatic receiving function,labeling device,fixed position labeling function and other function(customized)

Technical parameter:

l         Inner diameter of label: 76mm

l         Max outer diameter of label: ≤300mm

l         Label width: 10-150mm

l         Label length: 20-250mm

l         Bottle height: 200-350mm

l         Label precision: ±1mm

l         Production capacity: 30-80 bottle/minute(according to the bottles shape and label)

l         Power supply: 220V-50Hz/60Hz (according to the customer’s requirement)

l         Power: 700W

l         Weight: 350Kg

l         Dimension:2500mm×1300mm×1400mm L×W×H
