1. Product description:

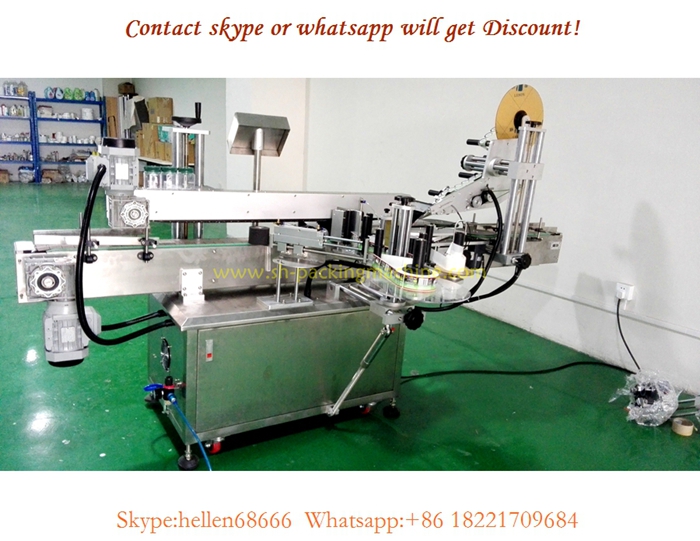

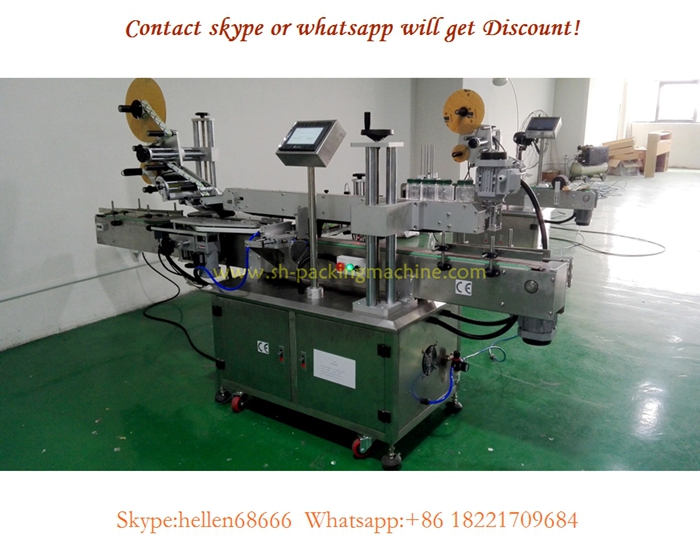

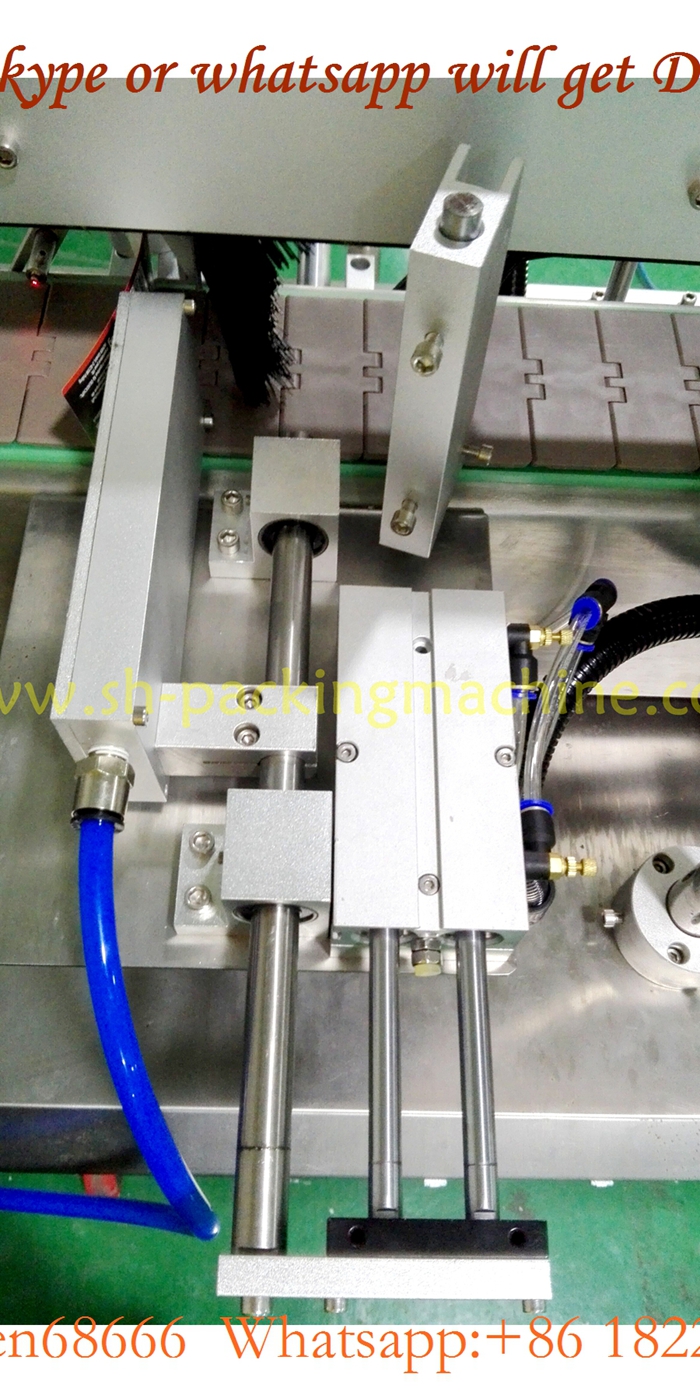

Labeling Machine is mainly composed of a host, spoke, sub bottles, a conveyor and so on.
The transmission of the bottles can be controlled through the touch screen, the coming out of labels

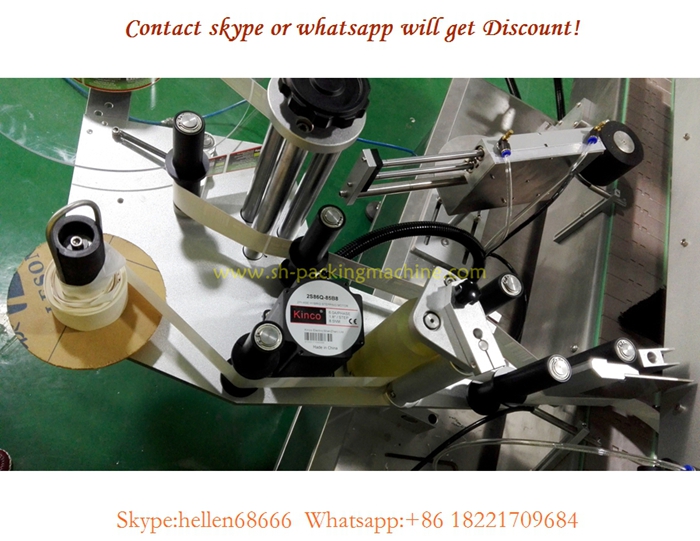

can be controlled by photoelectricity and the labels are affixed through the spoke. The great advantage

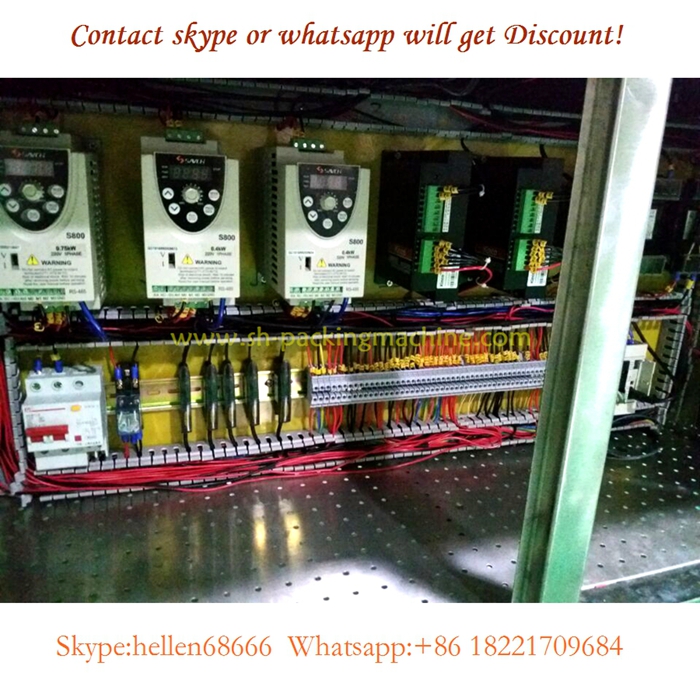

is that each drive part is controlled by separate electric machinery, which is durable and easy to adjust.

2. Product features:

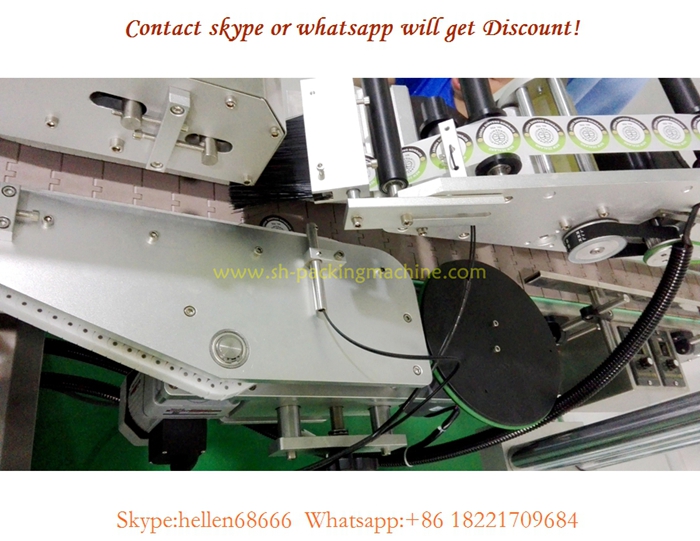

Automatic round bottle labeling machine labeling is to finish the label according to the principle of
rotary extrusion action。When the products on the conveyor belt running between spokes spokes
and baffle，Product testing photoelectric sensor is triggered to start signal，The main pulling motor

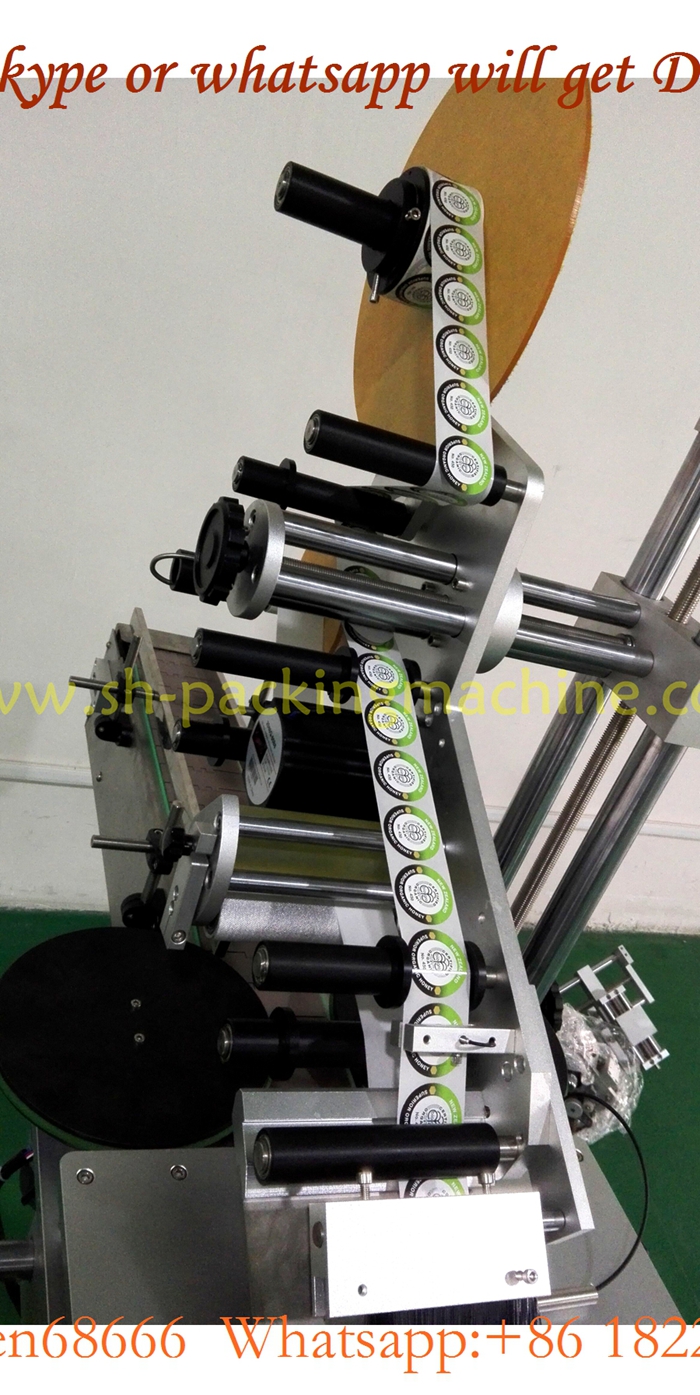

running，The bottom paper to spin out the label tag。Set the label delay through the system，
Paste labels on the products。When the gaps between the labels and tags After label detection sensor,
Label detection sensor automatically to stop the signal。Complete a label at this time cycle,
Such a cycle back and forth, to complete all the label production.

3. Technical Parameters:

  1. Production capacity: diameter 20-160 (mm), 10-100 bottles / min;

  2. Labeling precision: ≦ ± 1mm (depending on the verticality of the bottle)
  3. Pass rate: ≥ 99%
  4. Power supply: 220V 50Hz
  5. Total power: ≤1.2KW
  6. Dimension: 1650 × 700 × 850 (L × W × H)
  7. Weight: ≤200Kg
