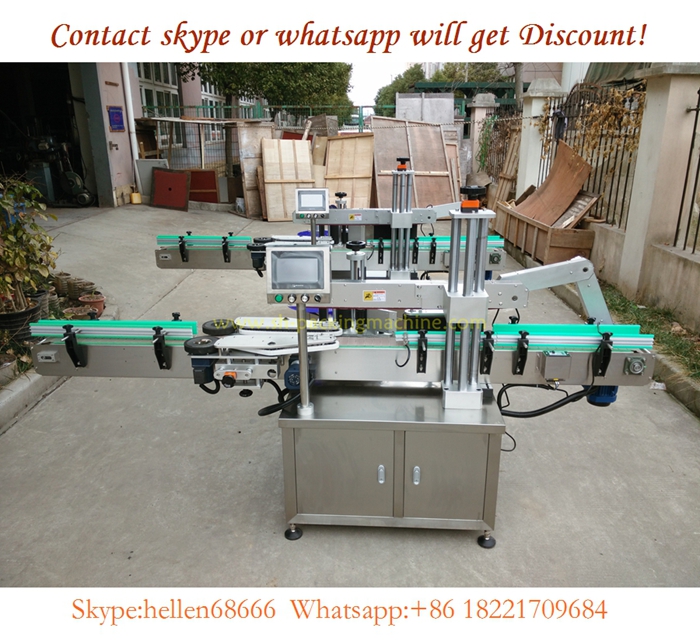

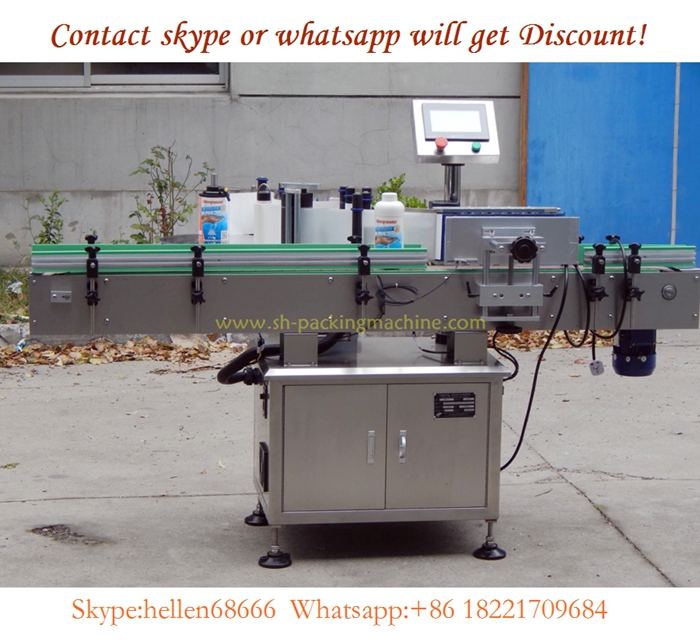

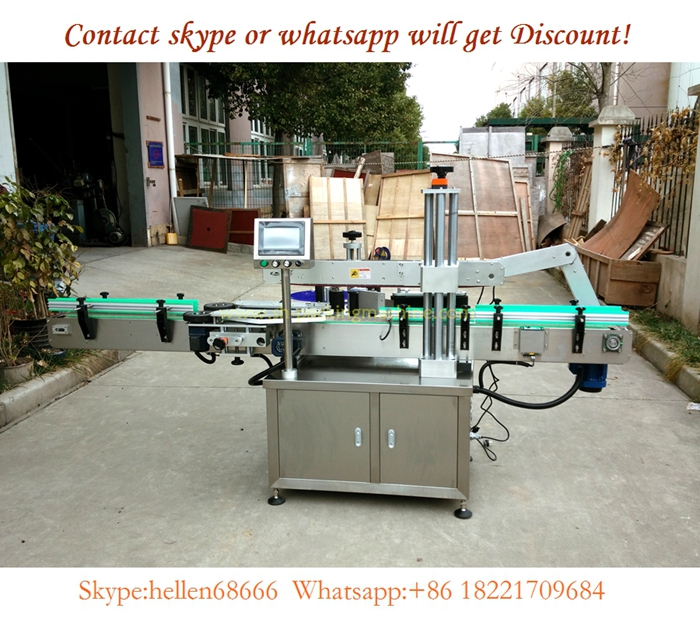

automatic round bottle labeling machine,adhesive labeling machine

Product description:

Round Bottle Adhesive Paper Labeling Machine is designed for wrap-around labeling on cylindrical bottles and containers.it can be customizable to different bottles,circle.it can apply for adhesive label,adhesive film, electronic supervision code and bar code.it is easy to adjust in a short time.The whole machine meet CE standard for chemical, food, commodity.

Product features:

PLC combined with LCD touch screen panel, the setting and operation is clear and easy.

The equipment is complied with GMP requirements and made with stainless steel and high-class aluminum alloy.

The machine has many functions such as guiding, separating, labeling, attaching and counting.

The labeling position of height can be adjusted.

The machine can be used in production line with conveyer belt.

The special machine can be customized according to customers’ requirements.

Technical parameters：

 (It could be customized according to customers’ requirements)

Machine size: L×W×H(2200×1100×1300mm);

Height of conveyer belt: 880mm;

Labeling speed:      20-200pcs/min (depend on the bottle size and label length);

Product height: 30-280mm;

Bottle diameter: 30-120mm;

Label height: 15-140mm;

Label length: 25-300mm;

Labeling precision: ±1mm(exclude product and label error);

Label reel diameter: inner 76mm;

Power supply: 220V 1.5HP 50/60HZ.
