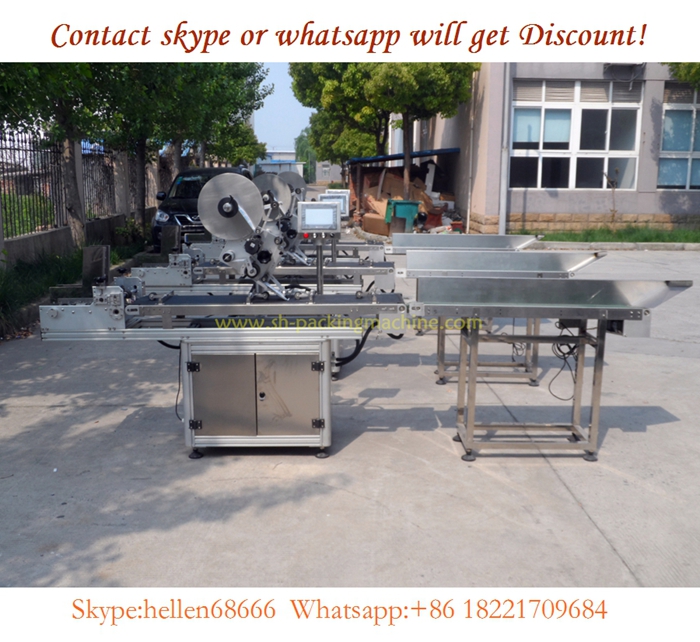

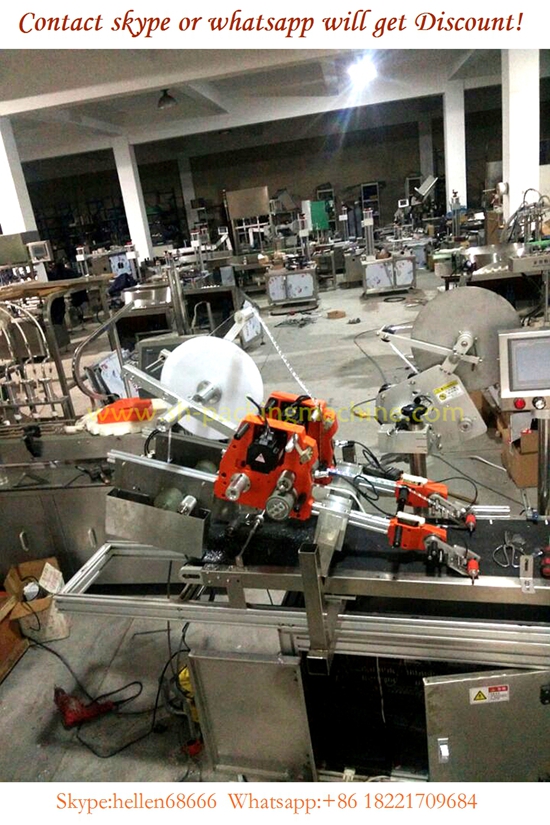

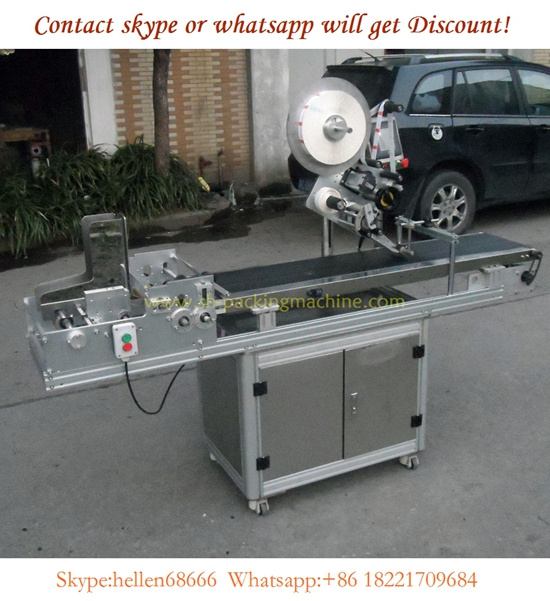

automatic bag plane paging labeling machine |
|
|
|
Product name：automatic bag plane paging labeling machine |
|
Item：USD6000 |
|
Price：USD6000 |
|
Details： |
|
        Prodcut description: Applicable to automatically separating and labeling pages of unformed paper boxes, instruction books and cards , and it can print codes which are from medicine, food, daily use chemical, etc. Prodcut features: 1.The vacuum conveyer belt takes materials onto it automatically avoiding material translocation. It can separate pages stably and accurately;
2.The whole machine adopts mature PLC control system to ensure the stable running in high speed;
3.Schistose material with any diameter can be separated and labeled automatically after adjusting and locating fast without changing accessories with the use of popular type paging separating installation;
4.Operation is simple, practical and efficient with the use of touch screen for operation system;
5.Speed regulation can be adjusted for labeling, conveying, paging separating as needed;
6.Labeling is performed smoothly with no creases with the use of elastic cotton idler wheel;
7.Automatic photoelectric detection functions including stopping labeling without objects there and stopping running or raising an alarm without labels to use to avoid omitting or wasting labels.
Technical parameters:
Model / technical parameters ZD-100A
Labeling speed (pcs/min) 40-150 pcs/min (relate to material and label size)
Labeling accuracy ±1.0mm (material and label sizes are not counted in)
Label size (L)20-200mm (H)10-144mm
Material size (L)60-300 (W)40-200 (H)0.3-2mm
Applicable Label Roll inside(mm): 76mm
Applicable label roll outer diameter (mm):Max350mm
Size of the whole machine (L)2200*(W)850*(H)1500 (mm)
Power supply AC220V 50Hz/60Hz 1200W
|
|
 |
